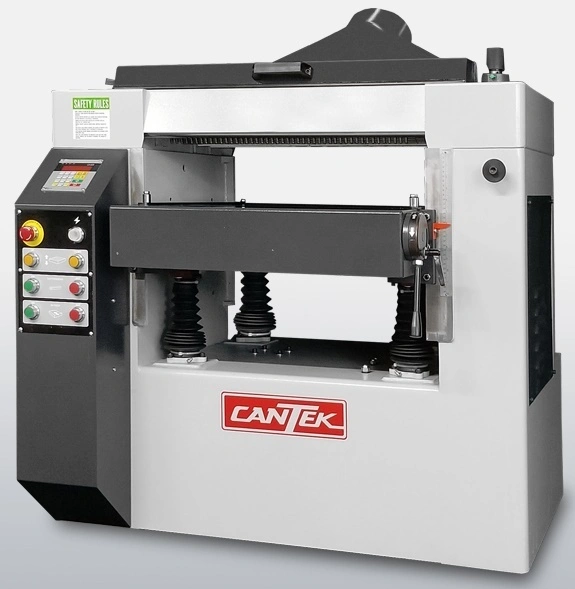

<p>The Cantek P815HV 32″ Planer has a solid steel helical cutterhead with two-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller, setting the table height is quick, accurate, and easy. The frame is made from heavy cast iron with known vibration damping resulting in long bearing life and superior cut quality. The planer’s segmented, serrated infeed roll & segmented pressure shoe ensures material is held firmly during the feeding and planing process. </p>
<h3>Features:</h3>
<div>
<ul>
<li>PLC digital control for auto-thickness setting</li>
<li>Sectional infeed roller and sectional chip breaker</li>
<li>Anti-kickback safety fingers for safe operation</li>
<li>Variable speed drive for optimum finish results according to the planing depth and material being planed.</li>
<li>Quick-set table roll adjustment to aid in feeding difficult to feel material</li>
<li>Steel spiral cutterhead with carbide inserts – 6 rows 120 inserts 30 x 12 x 1.5 mmCutters mounted on angle for ‘shear’ cut</li>
<li>Exhaust hood with 6″ outlet</li>
<li>Flip open upper hood for easy and convenient access to change the knives on the cutterhead</li>
<li>Safety limit switch on the cover will not allow the operator to run the machine with the hood open.</li>
<li>4 table raising jack screws</li>
</ul>
<p> </p>
<table style="width: 284px;">
<tbody>
<tr>
<td width="169">
<p><strong>Specifications:</strong></p>
</td>
<td width="115"> </td>
</tr>
<tr>
<td width="169">
<p>Maximum Planing Width</p>
</td>
<td style="text-align: center;" width="115">
<p>32”</p>
</td>
</tr>
<tr>
<td width="169">
<p>Maximum Planing Thickness</p>
</td>
<td style="text-align: center;" width="115">
<p>11-13/16″</p>
</td>
</tr>
<tr>
<td width="169">
<p>Minimum Planing Tthickness</p>
</td>
<td style="text-align: center;" width="115">
<p>3/8”</p>
</td>
</tr>
<tr>
<td width="169">
<p>Max. Depth of Cut</p>
</td>
<td style="text-align: center;" width="115">
<p>5/16″</p>
</td>
</tr>
<tr>
<td width="169">
<p>Minimum Length</p>
</td>
<td style="text-align: center;" width="115">
<p>8-3/4″</p>
</td>
</tr>
<tr>
<td width="169">
<p>Table Size</p>
</td>
<td style="text-align: center;" width="115">
<p>34 ¼” x 34 ¼”</p>
</td>
</tr>
<tr>
<td width="169">
<p>Feed Speed</p>
</td>
<td style="text-align: center;" width="115">
<p>20-39 FPM Variable</p>
</td>
</tr>
<tr>
<td width="169">
<p>Main Motor</p>
</td>
<td style="text-align: center;" width="115">
<p>20 HP</p>
</td>
</tr>
<tr>
<td width="169">
<p>Feed Motor</p>
</td>
<td style="text-align: center;" width="115">
<p>2 HP</p>
</td>
</tr>
<tr>
<td width="169">
<p>Power Rise and Fall of Table</p>
</td>
<td style="text-align: center;" width="115">
<p>½ HP</p>
</td>
</tr>
<tr>
<td width="169">
<p>Dust Hood</p>
</td>
<td style="text-align: center;" width="115">
<p>(1) 6”</p>
</td>
</tr>
<tr>
<td width="169">
<p>Shipping Weight</p>
</td>
<td style="text-align: center;" width="115">
<p>2450 lbs</p>
</td>
</tr>
<tr>
<td width="169">
<p>Shipping Dimensions</p>
</td>
<td style="text-align: center;" width="115">
<p>66” x 44” x 53”</p>
</td>
</tr>
</tbody>
</table>
