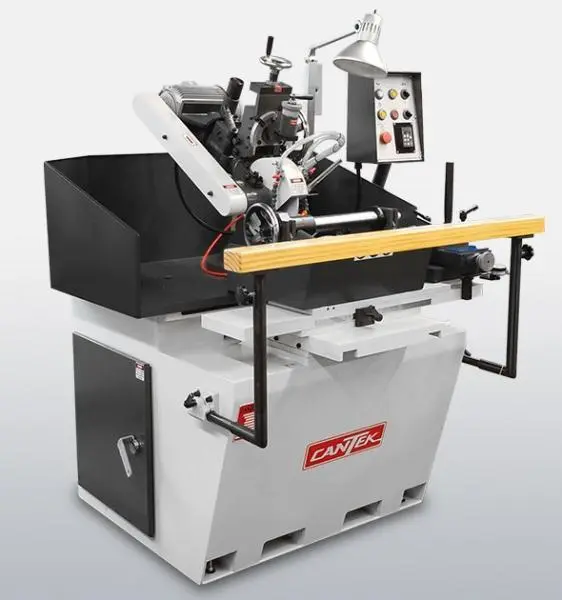

<p>The Cantek JF330A Profile Grinder was designed to ensure the operator can produce an optimum knife finish, while producing precisely accurate profiles. The VFD allows the operator to dial in the optimum grinding speed no matter what type of knife steel they are grinding. Using an axial constant setup, tools can be transferred to the moulder quickly for precise and fast changeovers. The cutterhead is mounted to a sliding worktable which runs on high precision Schneeberger linear bearings. </p>
<h3>Features:</h3>
<div>
<ul>
<li>3 HP grinding motor</li>
<li>VFD to allow RPM to be varied for different wheels, and diameters</li>
<li>Schneeberger linear bearings for effortless and smooth worktable movement</li>
<li>Axial constant set up</li>
<li>Quick change side angle adjustments</li>
<li>Quick change grinding wheel hubs</li>
</ul>
<p> </p>
<table style="width: 459px;">
<tbody>
<tr>
<td width="253">
<p><strong>Specifications:</strong></p>
</td>
<td style="text-align: center;" width="205"> </td>
</tr>
<tr>
<td width="253">
<p>Maximum Length of Straight Grind</p>
</td>
<td style="text-align: center;" width="205">
<p>12″</p>
</td>
</tr>
<tr>
<td width="253">
<p>Maximum Length of Profile Grind</p>
</td>
<td style="text-align: center;" width="205">
<p>12″</p>
</td>
</tr>
<tr>
<td width="253">
<p>Maximum Diameter of Swing</p>
</td>
<td style="text-align: center;" width="205">
<p>12″</p>
</td>
</tr>
<tr>
<td width="253">
<p>Max. Depth of Profile with 140 mm Hub</p>
</td>
<td style="text-align: center;" width="205">
<p>1.6″</p>
</td>
</tr>
<tr>
<td width="253">
<p>Max. Depth of Profile with 110 mm Hub</p>
</td>
<td style="text-align: center;" width="205">
<p>2″</p>
</td>
</tr>
<tr>
<td width="253">
<p>Grinding Motor</p>
</td>
<td style="text-align: center;" width="205">
<p>3 HP</p>
</td>
</tr>
<tr>
<td width="253">
<p>Grinding Wheel Size</p>
</td>
<td style="text-align: center;" width="205">
<p>225 mm dia. x 60 mm bore</p>
</td>
</tr>
<tr>
<td width="253">
<p>Machine Dimensions</p>
</td>
<td style="text-align: center;" width="205">
<p>41 x 44 x 59″</p>
</td>
</tr>
<tr>
<td width="253">
<p>Machine Weight</p>
</td>
<td style="text-align: center;" width="205">
<p>1850 lbs</p>
</td>
</tr>
</tbody>
</table>
