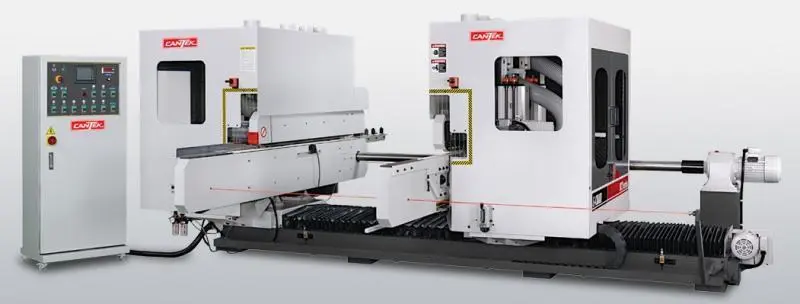

<p>The Cantek ECT Series Double End Tenoners are robustly built for the most demanding applications. They are available with up to (8) spindles (4-per side) and come in widths from 51” to 141”. These double end tenoners are ideal for door, furniture, & window production and more. The ECT series can be customized for your specific needs with a wide range of processing units and features. The ECT are available as a stand-alone solution or can be purchased in a line for processing all four sides of a workpiece automatically.</p>
<h3>Key Advantages:</h3>
<div>
<ul>
<li>Automatic braking of saw blades and moulding heads</li>
<li>Digital readout for thickness adjustment</li>
<li>Feed conveyor is equipped with needle bearings to increase wear-resistance. Choice of rubber or phenolic surfaces</li>
<li>The movable side of the double end tenoner is mounted on precision linear guideways to ensure accuracy and smooth movement</li>
<li>Width is set through the tough screen combined with a PLC to ensure high positioning accuracy</li>
<li>Mechanical digital readouts for accurate positioning of each working unit</li>
<li>Optional HSK and quick set tooling</li>
</ul>
</div>
<p> </p>
<table style="width: 906px;" border="0" cellspacing="0" cellpadding="0" align="left">
<tbody>
<tr>
<td valign="bottom" width="201">
<p><strong>Specifications:</strong></p>
</td>
<td valign="bottom" width="251">
<p align="center"><strong>ECT-86S</strong></p>
</td>
<td valign="bottom" width="251">
<p align="center"><strong>ECT-66S</strong></p>
</td>
<td valign="bottom" width="204">
<p align="center"><strong>ECT-46S</strong></p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Max. Working Width</p>
</td>
<td valign="bottom" width="251">
<p align="center">2600 (3000/3600) mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">2000 mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">1300 mm</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Min. Working Width</p>
</td>
<td valign="bottom" width="251">
<p align="center">210 mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">210 mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">210 mm</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Max. Working Thickness</p>
</td>
<td valign="bottom" width="251">
<p align="center">120 mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">120 mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">120 mm</p>
</td>
</tr>
<tr>
<td colspan="4" valign="bottom" width="906">
<p><strong>Feed Chain Track</strong></p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Motor Horsepower</p>
</td>
<td valign="bottom" width="251">
<p align="center">2 (3/5) HP</p>
</td>
<td valign="bottom" width="251">
<p align="center">2 (3/5) HP</p>
</td>
<td valign="bottom" width="204">
<p align="center">2 (3/5) HP</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Feed Speed</p>
</td>
<td valign="bottom" width="251">
<p align="center">5-25 m/min</p>
</td>
<td valign="bottom" width="251">
<p align="center">5-25 m/min</p>
</td>
<td valign="bottom" width="204">
<p align="center">5-25 m/min</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Distance Between Dogs</p>
</td>
<td valign="bottom" width="251">
<p align="center">400 (300/200) mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">400 (300/200) mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">400 (300/200) mm</p>
</td>
</tr>
<tr>
<td colspan="4" valign="bottom" width="906">
<p><strong>Movable Side Shifting System</strong></p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Motor Horsepower</p>
</td>
<td valign="bottom" width="251">
<p align="center">1 HP</p>
</td>
<td valign="bottom" width="251">
<p align="center">1 HP</p>
</td>
<td valign="bottom" width="204">
<p align="center">1 HP</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Feed Speed</p>
</td>
<td valign="bottom" width="251">
<p align="center">2 m/min</p>
</td>
<td valign="bottom" width="251">
<p align="center">2 m/min</p>
</td>
<td valign="bottom" width="204">
<p align="center">2 m/min</p>
</td>
</tr>
<tr>
<td colspan="4" valign="bottom" width="906">
<p><strong>Scoring Saw System</strong></p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Motor Horsepower</p>
</td>
<td valign="bottom" width="251">
<p align="center">2 (3/5/7.5) HP</p>
</td>
<td valign="bottom" width="251">
<p align="center">2 (3/5/7.5) HP</p>
</td>
<td valign="bottom" width="204">
<p align="center">2 (3/5/7.5) HP</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Spindle Speed</p>
</td>
<td valign="bottom" width="251">
<p align="center">3450 RPM (60Hz)</p>
</td>
<td valign="bottom" width="251">
<p align="center">3450 RPM (60Hz)</p>
</td>
<td valign="bottom" width="204">
<p align="center">3450 RPM (60Hz)</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Spindle Diameter</p>
</td>
<td valign="bottom" width="251">
<p align="center">25.4 (30) mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">25.4 (30) mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">25.4 (30) mm</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Sawblade Diameter</p>
</td>
<td valign="bottom" width="251">
<p align="center">120-305 mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">120-305 mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">120-305 mm</p>
</td>
</tr>
<tr>
<td colspan="4" valign="bottom" width="906">
<p><strong>Main Saw System</strong></p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Motor Horsepower</p>
</td>
<td valign="bottom" width="251">
<p align="center">5 (7.5/10) HP</p>
</td>
<td valign="bottom" width="251">
<p align="center">5 (7.5/10) HP</p>
</td>
<td valign="bottom" width="204">
<p align="center">5 (7.5/10) HP</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Spindle Speed</p>
</td>
<td valign="bottom" width="251">
<p align="center">3450 RPM (60Hz)</p>
</td>
<td valign="bottom" width="251">
<p align="center">3450 RPM (60Hz)</p>
</td>
<td valign="bottom" width="204">
<p align="center">3450 RPM (60Hz)</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Spindle Diameter</p>
</td>
<td valign="bottom" width="251">
<p align="center">25.4 (30) mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">25.4 (30) mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">25.4 (30) mm</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Sawblade Diameter</p>
</td>
<td valign="bottom" width="251">
<p align="center">205-355 mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">205-355 mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">205-355 mm</p>
</td>
</tr>
<tr>
<td colspan="4" valign="bottom" width="906">
<p><strong>Moulding System</strong></p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Motor Horsepower</p>
</td>
<td valign="bottom" width="251">
<p align="center">5 (7.5/10) HP</p>
</td>
<td valign="bottom" width="251">
<p align="center">5 (7.5/10) HP</p>
</td>
<td valign="bottom" width="204">
<p align="center">5 (7.5/10) HP</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Spindle Speed</p>
</td>
<td valign="bottom" width="251">
<p align="center">3000/8000 RPM</p>
</td>
<td valign="bottom" width="251">
<p align="center">3000/8000 RPM</p>
</td>
<td valign="bottom" width="204">
<p align="center">3000/8000 RPM</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Spindle Diameter</p>
</td>
<td valign="bottom" width="251">
<p align="center">40 mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">40 mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">40 mm</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Cutter Diameter</p>
</td>
<td valign="bottom" width="251">
<p align="center">180-210 mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">180-210 mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">180-210 mm</p>
</td>
</tr>
<tr>
<td colspan="4" valign="bottom" width="906">
<p><strong>Weight</strong></p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>N.W.</p>
</td>
<td valign="bottom" width="251">
<p align="center">4350 kg</p>
</td>
<td valign="bottom" width="251">
<p align="center">3900 kg</p>
</td>
<td valign="bottom" width="204">
<p align="center">3500 kg</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>G.W.</p>
</td>
<td valign="bottom" width="251">
<p align="center">5000 kg</p>
</td>
<td valign="bottom" width="251">
<p align="center">4750 kg</p>
</td>
<td valign="bottom" width="204">
<p align="center">4200 kg</p>
</td>
</tr>
<tr>
<td colspan="4" valign="bottom" width="906">
<p><strong>Dimensions</strong></p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Machine size (mm)</p>
</td>
<td valign="bottom" width="251">
<p align="center">4560x2360x1470 mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">3960x3260x1470 mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">3360x3260x1470 mm</p>
</td>
</tr>
<tr>
<td valign="bottom" width="201">
<p>Packing size (mm)</p>
</td>
<td valign="bottom" width="251">
<p align="center">4760x2280x1750 mm</p>
</td>
<td valign="bottom" width="251">
<p align="center">4160x2280x1750 mm</p>
</td>
<td valign="bottom" width="204">
<p align="center">3560x2280x1750 mm</p>
</td>
</tr>
</tbody>
</table>
