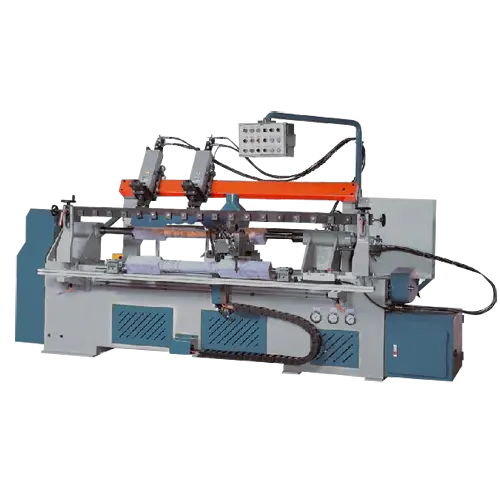

<p>The Castaly 59" Auto Copy Lathe CL-59SAP is suitable for little quantity and multiple style production use.</p>
<h3>Features:</h3>
<div>
<ul>
<li>Place original material or template for duplicate productions.</li>
<li>It is not needed to use profile knife for cutting, saves the cutter's cost.</li>
<li>The cutter carriage's forward and backward movements are hydraulically operated with feed speed control providing a smooth motion and stable cutting performance.</li>
<li>Adopts the precision hydraulic copy unit, the workpiece of most form can be duplicated.</li>
<li>Easy to operate and lower maintenance cost.</li>
<li>There is a tong shaving knife to precut and guide ring to support the workpieces when cutting. This will enable the cutting performance to be stable and more accurate.</li>
<li>Equipped with two sets of copying devices. One is copying device, which is driven by links and adopts U-cutting tools. The other one is sample copy device by hydraulic system and adopts V-cutting tools.</li>
<li>Equipped with material center set up rack and automatic lubricator to lubricate the slide ways and keeps the slide ways in the optimal lubricated condition.</li>
<li>Industrial full power motor for maximum cutting capacity.</li>
<li>Precision sealed long-life bearing.</li>
<li>Heavy cast iron frame and table for durability usage.</li>
</ul>
<p> </p>
<table style="width: 407px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="191">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="216">
<p align="center"> </p>
</td>
</tr>
<tr>
<td width="191">
<p>Max. Between Center</p>
</td>
<td width="216">
<p align="center">59"</p>
</td>
</tr>
<tr>
<td width="191">
<p>Max. Finish Product Dia.</p>
</td>
<td width="216">
<p align="center">4-1/4"</p>
</td>
</tr>
<tr>
<td width="191">
<p>Spindle Speed</p>
</td>
<td width="216">
<p align="center">2,000 ~ 6,000 RPM</p>
</td>
</tr>
<tr>
<td width="191">
<p>Main Motor</p>
</td>
<td width="216">
<p align="center">7.5 HP</p>
</td>
</tr>
<tr>
<td width="191">
<p>Hydraulic Motor</p>
</td>
<td width="216">
<p align="center">3 HP</p>
</td>
</tr>
<tr>
<td width="191">
<p>Template Copier</p>
</td>
<td width="216">
<p align="center">One</p>
</td>
</tr>
<tr>
<td width="191">
<p>Model Copier</p>
</td>
<td width="216">
<p align="center">One</p>
</td>
</tr>
<tr>
<td width="191">
<p>Max. Copier Travel</p>
</td>
<td width="216">
<p align="center">3-1/8"</p>
</td>
</tr>
<tr>
<td width="191">
<p>Total Cutting Knife</p>
</td>
<td width="216">
<p align="center">4</p>
</td>
</tr>
<tr>
<td width="191">
<p>Feed Speed</p>
</td>
<td width="216">
<p align="center">Variable</p>
</td>
</tr>
<tr>
<td width="191">
<p>Operation</p>
</td>
<td width="216">
<p align="center">Manu. Semiauto, Auto</p>
</td>
</tr>
<tr>
<td width="191">
<p>N.W.</p>
</td>
<td width="216">
<p align="center">2900 LBS</p>
</td>
</tr>
<tr>
<td width="191">
<p>G.W.</p>
</td>
<td width="216">
<p align="center">3400 LBS</p>
</td>
</tr>
</tbody>
</table>
</div>
