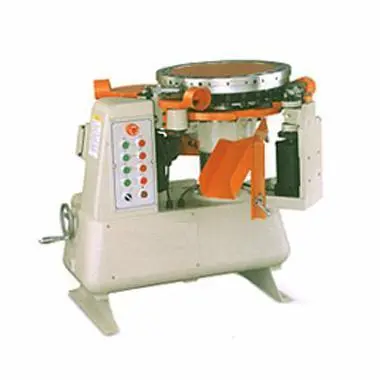

<p>The Castaly 1/4" ~ 3/4" Dowel Cutting Machine (High Speed) DC-7500 is a high production, high speed dowel cross-cutting and chamfering machine.</p>
<h3>Features:</h3>
<div>
<ul>
<li>The DC-7500 can auto sift out dowel which length is insufficient.</li>
<li>Each spiral fluting, straight fluting, smooth and dowels with dowel cross-cut and chamfering from DC-7500.</li>
<li>Capacity: Approx. 7,500-15,000 dowels/hour with infinitely variable speed change.</li>
<li>Cutting length range: 30-150 mm.</li>
<li>Accuracy turbine and turbine shaft perform feeding transfer, lubrication for transfer parts in oil box to increase prolonged the serving life.</li>
<li>Chamfering cut off and feed drives each with a separate motor.</li>
<li>The DC-7500 has 2 sets chamfering cutter perform double end chamfering before dowel cross-cut.</li>
<li>Easy adjustable and saves time.</li>
</ul>
<p> </p>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td class="xl27" width="163" height="17"><strong>SPECIFICATIONS:</strong></td>
<td class="xl24" width="118"><center></center></td>
</tr>
<tr>
<td class="xl25" height="17">Range of Working Diameter</td>
<td class="xl26" style="text-align: center;">
<p>Ø6 to Ø18 mm</p>
</td>
</tr>
<tr>
<td class="xl25" height="17">Minimum Cutting Length</td>
<td class="xl26" style="text-align: center;">
<p>30 mm</p>
</td>
</tr>
<tr>
<td class="xl25" height="17">Maximum Cutting Length</td>
<td class="xl26" style="text-align: center;">
<p>150 mm</p>
</td>
</tr>
<tr>
<td class="xl25" height="17">Capacity</td>
<td class="xl26" style="text-align: center;">
<p>Around 7500 - 15000 dowels/ hour</p>
</td>
</tr>
<tr>
<td class="xl25" height="17">(Infinitely Variable)</td>
<td class="xl26" style="text-align: center;"> </td>
</tr>
<tr>
<td class="xl25" height="17">First Chamfering Motor</td>
<td class="xl26" style="text-align: center;">
<p>1/2 HP</p>
</td>
</tr>
<tr>
<td class="xl25" height="17">Second Chamfering Motor</td>
<td class="xl26" style="text-align: center;">
<p>1/2 HP</p>
</td>
</tr>
<tr>
<td class="xl25" height="17">Cutting Motor</td>
<td class="xl26" style="text-align: center;">
<p>1/2 HP</p>
</td>
</tr>
<tr>
<td class="xl25" height="17">Feed Motor</td>
<td class="xl26" style="text-align: center;">
<p>1/2 HP</p>
</td>
</tr>
<tr>
<td class="xl25" height="17">Machine Sizes (L x W x H)</td>
<td class="xl26" style="text-align: center;">
<p>1000 x 700 x 880 mm</p>
</td>
</tr>
<tr>
<td class="xl25" height="17">Packing Sizes (L x W x H)</td>
<td class="xl26" style="text-align: center;">
<p>1200 x 930 x 1080 mm</p>
</td>
</tr>
<tr>
<td class="xl25" height="17">N.W.</td>
<td class="xl26" style="text-align: center;">390 kg</td>
</tr>
<tr>
<td class="xl25" height="17">G.W.</td>
<td class="xl26" style="text-align: center;">420 kg</td>
</tr>
</tbody>
</table>
