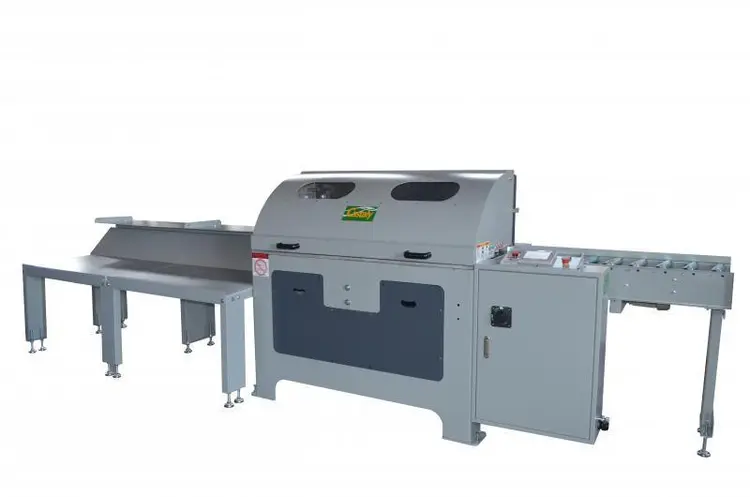

Castaly Feed Through Auto End Matcher SFJ-300A
Have one to sell?
ConditionNew
New
Castaly Feed Through Auto End Matcher SFJ-300A performs end tenoning, mortising, and shaping at both ends of the stick.
Features:
PLC control combined with touch-sensing screen for maximum convenience of operation.
Each cutter head is driven by an independent powerful motor.
7500 RPM spindle speed.
Unlimited wood length.
Auto conveyor for infeed and outfeed processes.
Cutter feed is controlled by a frequency inverter that permits variable speed changes to suit various cutting conditions.
Pressure plates are actuated by air cylinders.
Hard chrome-plated table features maximum wear resistance.
Table rollers increase feed smoothness.
Powered infeed roller conveyor is driven by a 1 HP motor.
3400 mm infeed roller conveyor and 2200 mm out feed conveyor table are standard equipment.
Fully enclosed splash guard.
Air-operated clamp comes down holding sticks firmly in place. After workpiece is clamped, cutterhead moves in and performs shaping operation.
The shaper spindle is precision constructed for cutting finger shapes accurately and accommodates a maximum cutter diameter of up to 6”.
The spindle height adjustment is displayed on a dial gauge.
SPECIFICATIONS:
Working Width
1 1/2" ~ 12"
Working Thickness
3/8" ~ 1 3/8"
Min. Working Length
10-1/2"
Max. Working Length
Unlimited
Feed Speed (Variable)
297 FPM
Cutting Speed
79 FPM
Cutter Motor
5 1/2 HP x 3
Feed Motor
21HP
Cutter Movement Motor
1/2 HP
Cutter Spindle Diameter
41 mm
Air Requirement
13 CFM
Machine Size (W x L x H)
51" x 90" x 62"
Machine Weight
2560 LBS
