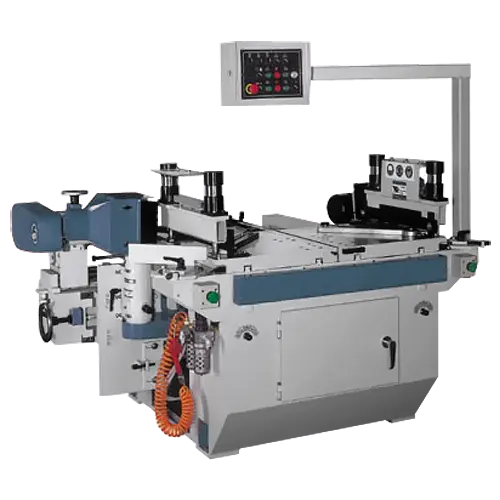

<p>Castaly Auto Slide Shaper, End Tenoner / Match with Dowel Drill CS-4045DR has fully automatic function, just place the material against the stops, machine will automatically clamp, and move in for shaping and drilling, comes out and releases the hold down.</p>
<h3>Features:</h3>
<div>
<ul>
<li>One shaper head and one drill head for the dowel at each side of table.</li>
<li>The 6" high stackable spindle by pneumatic up & down with 3 different stops are easily and accurately setup for each cutter position.</li>
<li>Fast, safe and labor saving.</li>
<li>Table moves from in and out by variable speed pneumatic power to achieve fully cutting power.</li>
<li>Two tables move in and out separated for tongue and groove, end match application or two tables can be connected together for longer material.</li>
<li>Rigid construction on the heavy sheet metal frame, cast iron table & base for durability usage.</li>
<li>Heavy-duty industrial motor is suitable for heavy-duty cutting under full load.</li>
<li>Linear guide rails and bearings let the operator move the table by lightweight and smoothly to get the long life usage also.</li>
<li>Cast iron fence locks in the table groove to finish 45-degree cut easily.</li>
<li>Twin heavy-duty air pistons hold down the workpieces tightly to the table during the cutting process.</li>
</ul>
<p> </p>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td class="xl27" width="185" height="17"><strong>SPECIFICATIONS:</strong></td>
<td class="xl24" width="125"><center></center></td>
</tr>
<tr>
<td class="xl25" height="17">Max Cutting Length (left or right)</td>
<td class="xl26"><center>20"</center></td>
</tr>
<tr>
<td class="xl25" height="17">Max Cutting Length (two table together)</td>
<td class="xl26"><center>40"</center></td>
</tr>
<tr>
<td class="xl25" height="17">Max Cutting Length (45 degree)</td>
<td class="xl26"><center>30"</center></td>
</tr>
<tr>
<td class="xl25" height="17">Max Cutting Width</td>
<td class="xl26"><center>13 ¾”</center></td>
</tr>
<tr>
<td class="xl25" height="17">Spindle under Nut</td>
<td class="xl26"><center>4"</center></td>
</tr>
<tr>
<td class="xl25" height="17">Max. Cutter Size</td>
<td class="xl26"><center>5"</center></td>
</tr>
<tr>
<td class="xl25" height="17">Spindle Diameter</td>
<td class="xl26"><center>1¼"</center></td>
</tr>
<tr>
<td class="xl25" height="17">Spindle Length</td>
<td class="xl26"><center>6"</center></td>
</tr>
<tr>
<td class="xl25" height="17">Spindle Speed</td>
<td class="xl26"><center>9000 RPM</center></td>
</tr>
<tr>
<td class="xl25" height="17">Main Motor</td>
<td class="xl26"><center>5 HP x 2</center></td>
</tr>
<tr>
<td class="xl25" height="17">Drill Motor</td>
<td class="xl26"><center>1 HP x 2</center></td>
</tr>
<tr>
<td class="xl25" height="17">Dust Hood</td>
<td class="xl26"><center>4" x 2</center></td>
</tr>
<tr>
<td class="xl25" height="17">Net weight</td>
<td class="xl26"><center>2600 LBS</center></td>
</tr>
<tr>
<td class="xl25" height="17">Gross Weight</td>
<td class="xl26"><center>3230 LBS</center></td>
</tr>
</tbody>
</table>
