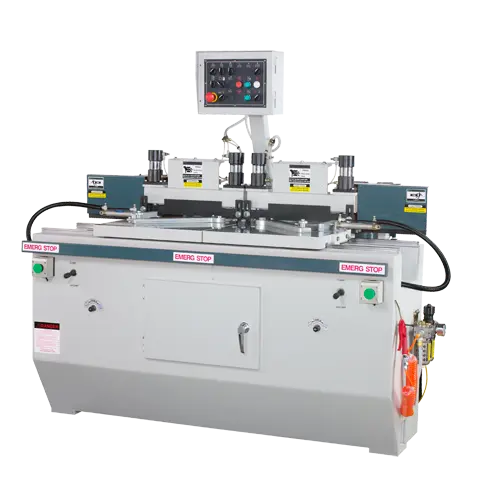

Castaly Auto Slide Shaper, End Tenoner / Match with Dowel Drill CS-2145DR
Have one to sell?
ConditionNew
New
Castaly Auto Slide Shaper, End Tenoner / Match with Dowel Drill CS-2145DR is one of several options offered by Castaly. Refer to features and specifications to find the one that best meets your needs.
Features:
Fully automatic cycle function, just place the material against the stops, machine will automatic clamp, move in for shaping and drilling, come out and release the hold down.
Fast, safe and labor saving.
One shaper head and one drill head for the dowel at each side of the table.
The 6" high stackable spindle by pneumatic up & down with 3 different stops are easily and accurately setup for each cutter position.
Table moves from right to left by variable speed pneumatic-hydraulic power to achieve the full cutting power.
Twin table moves in and out separated for tongue and groove, end match application.
Twin heavy-duty pneumatic pistons hold down the workpieces tightly to the table during the cutting process.
Rigid construction on the heavy sheet metal frame, case iron table & base for durability usage.
Heavy duty industrial motor is suitable for heavy duty cutting under full load.
Linear guide rails and bearings let the operator moving the table smoothly.
Cast iron fence locks in the table groove to finish 45-degree cut easily.
SPECIFICATIONS:
Max. Cutting Length
Unlimited
Max. Cutting Width (45 degree)
9"
Max. Cutting Width (90 Degree)
11"
Max. Cutter Diameter
6" Dia
Spindle Diameter
1 1/4"
Spindle Length
7" (Stackable)
Spindle Speed
9000 RPM
Shaper Spindle Motor
5 HP x 2
Dowel Drill Chuck
½” x 2
Dowel Drill Motor
1 HP x 2
Dust Hood
4" x 4
Net Weight
3200 LBS
