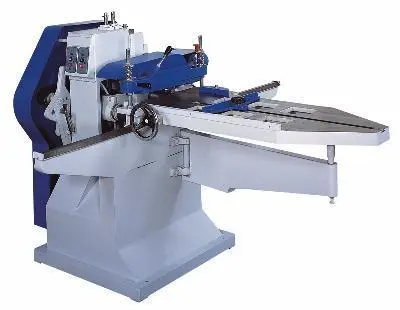

Castaly Single End Tenoner SET-60
Have one to sell?
ConditionNew
New
Castaly Single End Tenoner SET-60 performs cut off, burrs trimming, and moulding functions.
Features:
Two 4" D x 5" L max. tenon cutters, cope spindle accepts general shaper cutter. Suited for cutting tenons, finger joints for window or doorframe and general joint-tenon.
Hand, manual operated clamping and feeding of stock.
First the trim saw to cut off the end of stock evenly.
Then two moulding, tenon spindles are mounted at the rear of saw enable machine performs edge moulding.
Since each head is adjusted independently, a wide variety of tenon can be cut.
At the end the cope spindle provides 6000 RPM cutting which allows it to feature a spindle sharper function.
All operations can be accomplished in a single pass of feeding, high efficiency is assured.
Powerful industrial motor for maximun cutting capacity.
Precision sealed long-life bearing.
Heavy cast iron frames and table for durability usage.
SPECIFICATIONS:
CAPACITY
Max. Length of Cut
~
Min. Length of Cut
5"
Max. Width of Cut
17"
Max. Clamping Thickness
4"
TRIM SAW
Saw Blade Dia.
8" ~ 10"x 1
Saw Arbor Dia.
1"
Saw Blade Speed
4000 RPM
Saw Head Tilt
NO
TENONER HEAD
Spindle Shaft
1" Dia. Taper x 4" L x 2
Spindle Speed
4000 RPM
COPE HEAD
Spindle Speed
3600 RPM
Spindle Shaft
1" Dia. x 4" L
Spindle Tilt
NO
TRAVERSE
Saw Longitudinal Travel
3"
Saw Vertical Travel
3"
Carriage Cross Travel
20"
MOTOR
Saw & Tenoner Head
3 HP x 1
Cope Head
3 HP x 1
WEIGHT
N.W.
990 LBS
G.W.
1200 LBS
