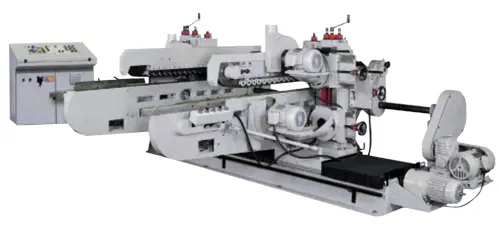

<p>Castaly 8 FT 8-Head Double End Tenoner SET-88DET is suitable for mass production of wood working factory for processing of double end cutting, tenoning, grooving, moulding, and sanding.</p>
<h3>Features:</h3>
<div>
<ul>
<li>The automatic high-speed through feed device allows for perfect finishing at speeds ranging from 20~66 FPM.</li>
<li>It is a powerful machine great for heavy-duty production.</li>
<li>In addition to the double end cutting, all the settings and other processing can also be executed with high accuracy.</li>
<li>Since the machine is so versatile, it should be one of the most satisfactory equipments for bulk production lumber-processing factories.</li>
<li>The specially designed numeric controller allows quick setting of sizes, for the tolerance within 0.004”.</li>
<li>Variable speed, through feed, wide rubber pad, spring-loaded dots conveyor for the best finish selections.</li>
<li>Heavy-duty powered pressure rolls at top of wide width conveyor to hold the material tight to prevent sliding during the cutting process.</li>
<li>Shaper head can be moved up & down, forward & backward.</li>
<li>Equipped with industrial motor for full power cutting and sanding capacity.</li>
<li>Trim saw heads can be tilted for different angular setup.</li>
<li>Heavy cast iron base for durability usage.</li>
</ul>
<p> </p>
<table style="width: 473px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="198">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="138"> </td>
</tr>
<tr>
<td>
<p>Max. Working Size</p>
</td>
<td>
<p align="center"> </p>
</td>
</tr>
<tr>
<td>
<p> Thickness</p>
</td>
<td>
<p align="center">3"</p>
</td>
</tr>
<tr>
<td>
<p> Length</p>
</td>
<td>
<p align="center">96"</p>
</td>
</tr>
<tr>
<td>
<p>Miter Saw Blade</p>
</td>
<td>
<p align="center">12" x 1" Dia.</p>
</td>
</tr>
<tr>
<td>
<p>Grooving Saw Blade</p>
</td>
<td>
<p align="center">10" x 1" Dia.</p>
</td>
</tr>
<tr>
<td>
<p>Shaper Cutter</p>
</td>
<td>
<p align="center">6" ~ 10" x 1" Dia.</p>
</td>
</tr>
<tr>
<td>
<p>Feed Speed</p>
</td>
<td>
<p align="center">20' ~ 66' Variable</p>
</td>
</tr>
<tr>
<td>
<p>Motor</p>
</td>
<td>
<p align="center">3 PH, 220/440 V</p>
</td>
</tr>
<tr>
<td>
<p>Trim Saw</p>
</td>
<td>
<p align="center">3 HP x 2</p>
</td>
</tr>
<tr>
<td>
<p>Grooving</p>
</td>
<td>
<p align="center">2 HP x 2</p>
</td>
</tr>
<tr>
<td>
<p>Vertical Shaper</p>
</td>
<td>
<p align="center">7 1/2 HP x 4</p>
</td>
</tr>
<tr>
<td>
<p>Sanding</p>
</td>
<td>
<p align="center">---</p>
</td>
</tr>
<tr>
<td>
<p>Feeding</p>
</td>
<td>
<p align="center">3 HP x 1</p>
</td>
</tr>
<tr>
<td>
<p>Width Setting</p>
</td>
<td>
<p align="center">1 HP x 1</p>
</td>
</tr>
<tr>
<td>
<p>Machine Size (L x W x L)</p>
</td>
<td>
<p align="center">14' x 10' x 5'</p>
</td>
</tr>
<tr>
<td>
<p>N.W.</p>
</td>
<td>
<p align="center">9800 LBS</p>
</td>
</tr>
<tr>
<td>
<p>G.W.</p>
</td>
<td>
<p align="center">11000 LBS</p>
</td>
</tr>
</tbody>
</table>
