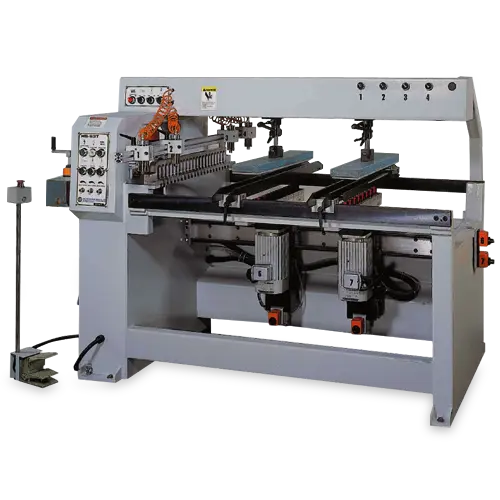

<p>The Castaly 2 Vertical Lines x 21 Drills Boring Machine BR-0042B is standard design and constructed for Horizontal and Vertical Boring units.</p>
<h3>Features:</h3>
<div>
<ul>
<li>The 42 vertical drills, drill head can be adjusted to any degree position for X or Y axis combination construction drill.</li>
<li>The machine is easy to operate. Simply press the foot switch and entire horizontal and vertical boring operations can be accomplished quickly.</li>
<li>Vertical boring for drilling at longitudinal and cross directions.</li>
<li>The vertical boring units can be adjusted up & down and right & left. Readouts are provided for accurate indication of adjustment.</li>
<li>An emergency switch is provided on the top beam, allowing the operator to stop the machine conveniently.</li>
<li>The panel clamp is adjustable at any position.</li>
<li>Square slide way for vertical boring unit, providing maximum rigidity and stability for boning operations.</li>
</ul>
<p> </p>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="245">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="150">
<p align="center"> </p>
</td>
</tr>
<tr>
<td width="245">
<p>No. of Ver. Boring Units</p>
</td>
<td width="150">
<p align="center">2 x 21 Bits</p>
</td>
</tr>
<tr>
<td width="245">
<p>No. of Hor. Boring Units</p>
</td>
<td width="150">
<p align="center">~</p>
</td>
</tr>
<tr>
<td width="245">
<p>Max. Working Size (W x L)</p>
</td>
<td width="150">
<p align="center">23 1/2" x 48"</p>
</td>
</tr>
<tr>
<td width="245">
<p>Drill Between Center</p>
</td>
<td width="150">
<p align="center">32 mm</p>
</td>
</tr>
<tr>
<td width="245">
<p>Drill Bit Type</p>
</td>
<td width="150">
<p align="center">7/16" x 14UNC</p>
</td>
</tr>
<tr>
<td width="245">
<p>Min. Dis. Between Ver. Heads</p>
</td>
<td width="150">
<p align="center">5-1/2"</p>
</td>
</tr>
<tr>
<td width="245">
<p>Max. Boring Stroke</p>
</td>
<td width="150">
<p align="center">3"</p>
</td>
</tr>
<tr>
<td width="245">
<p>No. of Ver Boring Head Spindles</p>
</td>
<td width="150">
<p align="center">42</p>
</td>
</tr>
<tr>
<td width="245">
<p>No. of Hor Boring Head Spindles</p>
</td>
<td width="150">
<p align="center">~</p>
</td>
</tr>
<tr>
<td width="245">
<p>Spindle Speed (RPM)</p>
</td>
<td width="150">
<p align="center">3400</p>
</td>
</tr>
<tr>
<td width="245">
<p>Ver. Boring Head Drive Motor</p>
</td>
<td width="150">
<p align="center">2 HP x 2</p>
</td>
</tr>
<tr>
<td width="245">
<p>Hor, Boring Head Drive Motor</p>
</td>
<td width="150">
<p align="center">~</p>
</td>
</tr>
<tr>
<td width="245">
<p>N.W.</p>
</td>
<td width="150">
<p align="center">1700 LBS</p>
</td>
</tr>
<tr>
<td width="245">
<p>G.W.</p>
</td>
<td width="150">
<p align="center">2100 LBS</p>
</td>
</tr>
</tbody>
</table>
