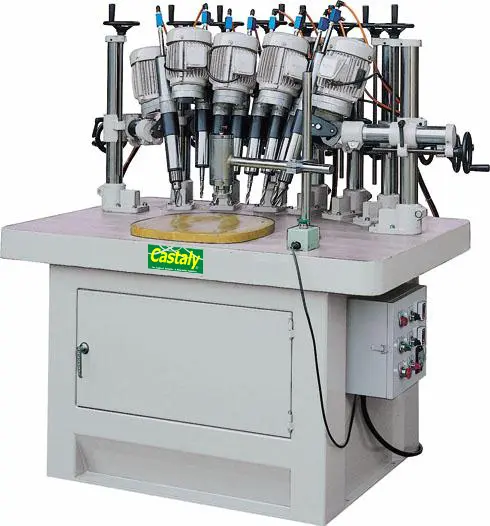

<p>Castaly Custom Universal Boring - Drilling Machine BR-338 is specially designed for simultaneous 3-side drilling operations.</p>
<h3>Features:</h3>
<div>
<ul>
<li>It is constructed with 2 heads on either side of machine and 4 heads on top.</li>
<li>Each head can be individually or simultaneously controlled for flexible drilling operations and can drill vertical or angled holes.</li>
<li>The machine is ruggedly constructed throughout and convenient operation and facilitated by the use of a foot switch control.</li>
<li>The spindle feed is pneumatically operated and controlled by a foot switch.</li>
<li>The spindle can be fitted with drill chucks or multi drill head or directly fitted with threaded drill bits.</li>
<li>The multi drill head and drill bits are supplied as optional.</li>
<li>It can add more drill heads.</li>
<li>1 HP x 4Top motor, 1 HP x 2 side motors, 3-1/4" stroke, speed 2000 RPM, 39" x 57" working area, 1-1/2" drill chuck 2" min drill distance (chuck type), multi drill head optional, pneumatic control, 4 PCs clamps, universal head swing, N.W. 1500 LBS, G.W. 2100 LBS.</li>
<li>OPTIONAL Multiple Drill Head.</li>
</ul>
</div>
