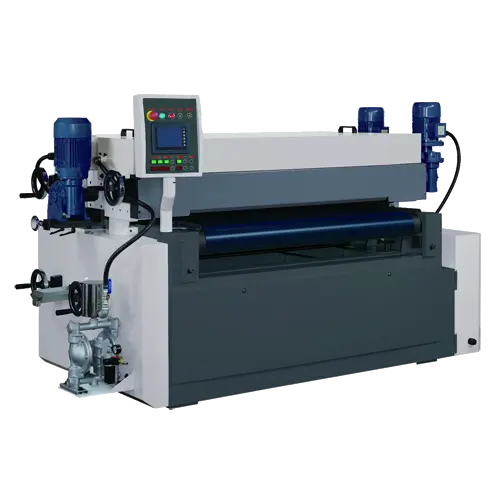

<p>The Castaly 4' Three Rolls Coater Machine TS-1200RRR is well-suited for coating materials as: knockdown furniture, wood toys, wood-figure assembling parts, plastic products, rubbers, leathers, foaming shoes, etc.</p>
<h3>Features:</h3>
<div>
<ul>
<li>Designed and built for the best coating performance.</li>
<li>They are capable of surface coating, color dying and printing.</li>
<li>With the roll coating principle, you simply place the workpieces on the conveyor belt. They will automatically move through the rolls; coating operation is fast accomplished.</li>
<li>Uniform coating thickness. You get superior finishing effect without the need of a skilled technician.</li>
<li>Rollers are covered with high quality rubber; assures absolute anti-solvent.</li>
<li>Top quality resin conveyor belt assures stretch and long service life. Fast cleaning and easy belt tracking with the hand wheel.</li>
<li>Working thickness and coating thickness adjustment is easily made with hand wheel.</li>
<li>Transmission motor can infinitely variable feed rate 65' ~ 204' per minute suited to coat various lengths of workpieces.</li>
<li>Eliminates air pollution problems; clean working environment with safety.</li>
<li>A comparison for coating same area of workpiece, the roll coaters can save at least 20% labor cost and 30% coating material than conventional coating method.</li>
<li>Free from moisture affecting (foggy) while operation under bad weather, coating wore still can be performed.</li>
<li>Increase the coating efficiency, get the best surface finish; the wide versatile LOBO roll coaters are the ideal machines for you.</li>
</ul>
<p> </p>
<table style="width: 406px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="238">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="168">
<p align="center"> </p>
</td>
</tr>
<tr>
<td>
<p>Max. Coating Width</p>
</td>
<td width="168">
<p align="center">50"</p>
</td>
</tr>
<tr>
<td>
<p>Max. Coating Thickness</p>
</td>
<td width="168">
<p align="center">1/12'' ~ 1 1/4"</p>
</td>
</tr>
<tr>
<td>
<p>Mm. Coating Length</p>
</td>
<td width="168">
<p align="center">6"</p>
</td>
</tr>
<tr>
<td>
<p>Feed Speed (infinitely variable)</p>
</td>
<td width="168">
<p align="center">68' ~ 204'</p>
</td>
</tr>
<tr>
<td>
<p>Coating Rolls</p>
</td>
<td width="168">
<p align="center">4 PCs</p>
</td>
</tr>
<tr>
<td>
<p>Conveyor Belt Motor</p>
</td>
<td width="168">
<p align="center">2 HP</p>
</td>
</tr>
<tr>
<td>
<p>Pump Motor</p>
</td>
<td width="168">
<p align="center">2 HP</p>
</td>
</tr>
<tr>
<td>
<p>Machine Dimension (L x W x H)</p>
</td>
<td width="168">
<p align="center">7.5' x 6.0' x 4.5'</p>
</td>
</tr>
<tr>
<td>
<p>N.W.</p>
</td>
<td width="168">
<p align="center">1760 LBS</p>
</td>
</tr>
<tr>
<td>
<p>G.W.</p>
</td>
<td width="168">
<p align="center">2400 LBS</p>
</td>
</tr>
</tbody>
</table>
</div>
