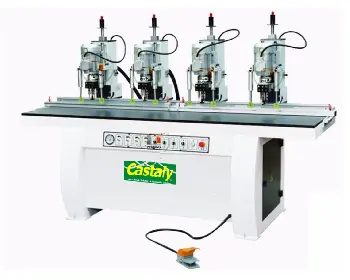

<p>Castaly Four Drills Hinge Boring Machine BR-04HG is a specially designed to drill and bore 1, 2 or 4 hinge pockets & holes in one pass.</p>
<h3>Features:</h3>
<div>
<ul>
<li>Pneumatic clamp and drill head travel, for fast and easy operation.</li>
<li>Precision large travel piston to ensure accurate drilling position.</li>
<li>Heavy-duty cast iron frame for durability for long periods of use.</li>
<li>Suitable and affordable for industrial and small workshop use.</li>
<li>Capable of using “multiple drill heads" to get any drilling figure.</li>
<li>Operated by foot pedal / hands free.</li>
</ul>
<p> </p>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td valign="top" width="180">
<p><strong>Specifications:</strong></p>
</td>
<td valign="top" width="138">
<p align="center"> </p>
</td>
</tr>
<tr>
<td valign="top" width="180">
<p>Boring Heads</p>
</td>
<td valign="top" width="138">
<p align="center">4</p>
</td>
</tr>
<tr>
<td valign="top" width="180">
<p>Spindle Speed</p>
</td>
<td valign="top" width="138">
<p align="center">2840 RPM</p>
</td>
</tr>
<tr>
<td valign="top" width="180">
<p>Spindle Motor</p>
</td>
<td valign="top" width="138">
<p align="center">1.5 HP x 4</p>
</td>
</tr>
<tr>
<td valign="top" width="180">
<p>Max. Drill Diameter</p>
</td>
<td valign="top" width="138">
<p align="center">1 ½”</p>
</td>
</tr>
<tr>
<td valign="top" width="180">
<p>Max. Drill Depth</p>
</td>
<td valign="top" width="138">
<p align="center">2”</p>
</td>
</tr>
<tr>
<td valign="top" width="180">
<p>Machine Weight</p>
</td>
<td valign="top" width="138">
<p align="center">1700 lbs.</p>
</td>
</tr>
<tr>
<td valign="top" width="180">
<p>Machine Size (L x W x H)</p>
</td>
<td valign="top" width="138">
<p align="center">100” x 32” x 61”</p>
</td>
</tr>
</tbody>
</table>
