Dotul Door & Panel Sizer DT-610
Have one to sell?
ConditionNew
New

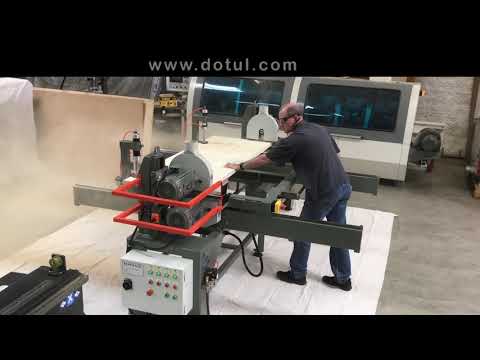

The Dotul Door & Panel Sizer, DT-610, sizes to length a door or panel, top & bottom using four blades that score and cut, producing a clean cut on both ends.
Features and Benefits:
Easy to load table - Safely locks in place while loading.
One operator can easily load the door or panel - Greater efficiency.
One stationary head and one movable head - Easy to change.
Fixed side, saw tilts; Movable side, saw is fixed - Allows for beveling.
Dust collection ports for all four saw blades - Easier cleanup.
Two 6" saw blades score the bottom prior to the main blades - For a clean cut.
Two 12" main saw blades are used with a 5 HP motor - Producing a quality cut.
Dust Collection Kit: Can be hooked up to a central dust collection system.
Specifications:
Working Length
6’ – 8’
Working Width
1’ – 4’
Working Thickness
3”
Left (fixed)
Saw Blade Motor: 2 HP 1 PH; 5 HP 1 PH
Motor Tilting Degree: 90° - 85°
Right (mobile - manual adjustment)
Saw Blade Motor: 2 HP 1 PH; 5 HP 1 PH
Motor Fixed: 90°
Digital Display (horizontal)
3
Cylinder Pressing
Push Down x 2 (manual)
Working Desk (linear slide)
5’ x 4’
