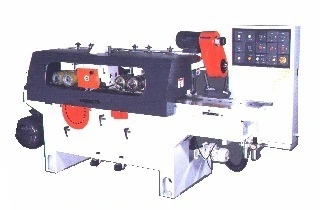

<p>Castaly 6" x 4" Two-Side Moulder Planer SM-152A includes feed speeds ranging from 20' ~ 98' per minute is a standard feature; faster feed speeds up to 120 feet per minute are available.</p>
<h3>Features:</h3>
<div>
<ul>
<li>The full safely enclosure cover as chips guard and helps to reduce noises.<br></li>
<li>Table surface is hard-chrome plated for maximum wear resistance.</li>
<li>All manually adjusted turning parts are housed in dry bearings for oil-free lubrication.</li>
<li>One-piece, cast iron machine frame and table is especially normalization heat treated for maximum stability and rigidity.</li>
<li>The smooth initial feeding of the stock is achieved by the independently powered infeed rollers.</li>
<li>All spindles are precision constructed and especially heat treated to provide maximum cutting stability and permanent accuracy.</li>
<li>Standard spindle speed is 8,000 RPM. Higher spindle speeds are available upon request.</li>
<li>Fence adjusted is quickly accomplished by a quick-setting lever.</li>
<li>The independent section pneumatic pressure for the infeed rollers, in-process rollers and outfeed rollers can be set with individual pressure allowing for consistent feeding results and outstanding effect.</li>
<li>The entire motion controls of the machine are centralized on the control panel for convenient operations.</li>
<li>All control levers for the spindles are located at the front of the machine for convenient adjustment.</li>
<li>Each spindle is provided with a mechanical digital read out, providing accurate adjustment.</li>
<li>The front pressure plate features draw-back performance which fully avoids damage on cutters caused by an over-height workpiece.</li>
<li>The rear pressure plate provides extremely uniform molding pressure for outstanding parallelism accuracy of machining.</li>
<li>An individual motor drives each spindle and is separately mounted to eliminate spindle chattering during high speed running.</li>
<li>The roller in the infeed table is powered, providing a smooth feeding effect for the tough stock.</li>
<li>The spindles are lubricated by the centralized lubrication system for convenience.</li>
</ul>
<p> </p>
<table style="width: 732px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="240">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="128"> </td>
</tr>
<tr>
<td width="240">
<p>Max. (Min.) Working Width</p>
</td>
<td width="128">
<p align="center">6" (3/4")</p>
</td>
</tr>
<tr>
<td width="240">
<p>Max. (Min.) Working Thickness</p>
</td>
<td width="128">
<p align="center">4 3/4" (5/16")</p>
</td>
</tr>
<tr>
<td width="240">
<p>Min. Working Length</p>
</td>
<td width="128">
<p align="center">9½"</p>
</td>
</tr>
<tr>
<td width="240">
<p>1st Spindle HP</p>
</td>
<td width="128">
<p align="center">5½ HP</p>
</td>
</tr>
<tr>
<td width="240">
<p>2nd, 3rd Spindle HP</p>
</td>
<td width="128">
<p align="center">~</p>
</td>
</tr>
<tr>
<td width="240">
<p>4th, 5th, 6th Spindle HP</p>
</td>
<td width="128">
<p align="center">7½, ~, ~ HP</p>
</td>
</tr>
<tr>
<td width="240">
<p>Feed Motor</p>
</td>
<td width="128">
<p align="center">3 HP</p>
</td>
</tr>
<tr>
<td width="240">
<p>Elevation</p>
</td>
<td width="128">
<p align="center">1/2 HP</p>
</td>
</tr>
<tr>
<td width="240">
<p>Spindle Diameter</p>
</td>
<td width="128">
<p align="center">40 mm</p>
</td>
</tr>
<tr>
<td width="240">
<p>Cutter Speeds (RPM)</p>
</td>
<td width="128">
<p align="center">6500</p>
</td>
</tr>
<tr>
<td width="240">
<p>Variable Feed Speeds (FPM)</p>
</td>
<td width="128">
<p align="center">16 ~ 66</p>
</td>
</tr>
<tr>
<td width="240">
<p>Cutterhead Diameter</p>
</td>
<td width="128">
<p> </p>
</td>
</tr>
<tr>
<td width="240">
<p align="center">1st Bottom Head</p>
</td>
<td width="128">
<p align="center">5"</p>
</td>
</tr>
<tr>
<td width="240">
<p align="center">2nd, 3rd Vertical Head</p>
</td>
<td width="128">
<p align="center">5" ~ 6 1/4"</p>
</td>
</tr>
<tr>
<td width="240">
<p align="center">4th ~ 6th Head</p>
</td>
<td width="128">
<p align="center">5" ~ 7"</p>
</td>
</tr>
<tr>
<td width="240">
<p>Pneumatic Air 90 PSI (CFM) </p>
</td>
<td width="128">
<p align="center">5</p>
</td>
</tr>
<tr>
<td width="240">
<p>Dust Outlet Diameter</p>
</td>
<td width="128">
<p align="center">5" x 2</p>
</td>
</tr>
<tr>
<td width="240">
<p>N.W. (LBS)</p>
</td>
<td width="128">
<p align="center">4900</p>
</td>
</tr>
<tr>
<td width="240">
<p>G.W. (LBS)</p>
</td>
<td width="128">
<p align="center">5860</p>
</td>
</tr>
</tbody>
</table>
