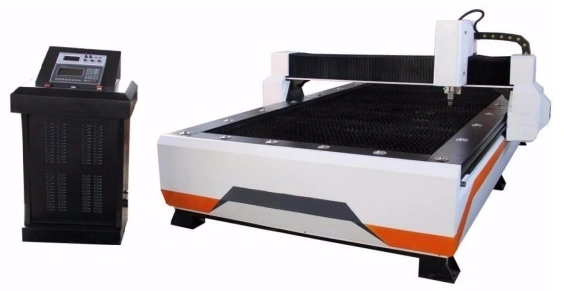

<p>Castaly Machinery offers a couple different CNC Plasma Machines. Please refer to features and specifications of each to find the one that best meets your needs.</p>
<h3>Features:</h3>
<div>
<ul>
<li>All “servo motor” driving system: All axis are driven by brush-less type, high torque AC servo motors.</li>
<li>Working mode; untouched arc striking. Auto cutting height adjustment by system for the best cutting result.</li>
<li>Auto height protection for safety & fast production.</li>
<li>A variety of Hypertherm Powermax torch styles provide exceptional versatility for hand cutting or gouging, portable automation, X-Y table and robotic cutting or gouging.</li>
<li>Finish jobs faster with cut speeds two and a half times greater than oxy / fuel on 1/2" mild steel.</li>
<li>Spend less time on grinding and edge preparation due to superior cut and gouge quality.</li>
<li>No need to change the air pressure; Smart Sense technology ensures that it is always correctly set.</li>
<li>Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting.</li>
<li>Tackle different jobs with multiple, easy-to-use torch styles.</li>
<li>Reduce costs with long consumable life and more up time.</li>
<li>High power efficiency lowers energy consumption.</li>
<li>Spring Start technology ensures consistent starting and a more reliable torch.</li>
<li>Low maintenance for maximum up time.</li>
<li>DSP CNC controller is setup to accept standard G-code programming formats along with on board conversational applications.</li>
<li>Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can be imported, modified and edited from here to create a G-code.</li>
<li>Moving gantry construction for space saving.</li>
<li>The rigid steel frame construction has been stress relieved prior to finish machining to provide repeat-ability and accuracy.</li>
<li>Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.</li>
<li>The X & Y axis are equipped with a precision rack & pinion driving system.</li>
<li>The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.</li>
</ul>
<p> </p>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td valign="top" width="234">
<p><strong>Specifications:</strong></p>
</td>
<td valign="top" width="264">
<p align="center"> </p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Control System</p>
</td>
<td valign="top" width="264">
<p align="center">DSP Control with USB Interface</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Command Language</p>
</td>
<td valign="top" width="264">
<p align="center">G Code</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Lathe Frame</p>
</td>
<td valign="top" width="264">
<p align="center">Heavy-duty Metal Welding</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Driving System</p>
</td>
<td valign="top" width="264">
<p align="center">Japan Yaskawa Servo Drive & Motor</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>X,Y Axis Structure</p>
</td>
<td valign="top" width="264">
<p align="center">Helical Rack & Pinion Drive</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Z Axis Structure</p>
</td>
<td valign="top" width="264">
<p align="center">Taiwan TBI or HIWIN Ball Screw</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>X Y X Axis Square Rails</p>
</td>
<td valign="top" width="264">
<p align="center">Taiwan HIWIN Brand Linear Rails</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Electric Parts</p>
</td>
<td valign="top" width="264">
<p align="center">France Schneider</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Limited Switch</p>
</td>
<td valign="top" width="264">
<p align="center">Japan Omron</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Machine Working Size</p>
</td>
<td valign="top" width="264">
<p align="center">X * 59”, Y * 118”, Z * 4”</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Machine Size (L x W x H)</p>
</td>
<td valign="top" width="264">
<p align="center">131” x 104” x 56”</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Machine Max. Travel Speed</p>
</td>
<td valign="top" width="264">
<p align="center">590 IPM</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Machine Max. Cutting Speed</p>
</td>
<td valign="top" width="264">
<p align="center">196 IPM</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Machine Power</p>
</td>
<td valign="top" width="264">
<p align="center">3 PH, 220 V</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>Machine Weight</p>
</td>
<td valign="top" width="264">
<p align="center">3,960 lbs.</p>
</td>
</tr>
<tr>
<td valign="top" width="234">
<p>CAD / CAM Drawing Software</p>
</td>
<td valign="top" width="264">
<p align="center">Optional</p>
</td>
</tr>
</tbody>
</table>
<p> </p>
<h5>Options:</h5>
<div>PLASMA-59118C: China Generator</div>
<div>PLASMA-59118HP: Hypertherm Powermax 85 Generator</div>
