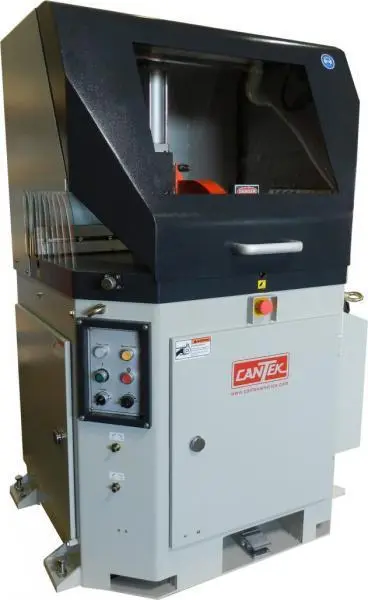

<p>Cantek Pneumatic Cut-Off Saw w/ Rotary Table PCM-508 is a high productivity, high accuracy, high speed cut-off saw. It's specially designed rotary table makes angular cutting easy and quick.</p>
<h3>Rotary Table:</h3>
<div>
<ul>
<li class="style3">The table can be swiveled to right and left with 45° (max. 60°) angle. This allows for angular cutting.</li>
<li class="style3">The table is equipped with a lock pin, allowing the table to fast position at 45° (60°).</li>
<li class="style3">Table surface is precision ground.</li>
</ul>
<div> </div>
<h3>Precision, Quick Clamping Mechanism:</h3>
<div>
<ul>
<li>The clamping mechanism is driven by an air cylinder in combination with the use of linear guide ways, that exhibit fast and smooth clamping motions.</li>
</ul>
<div> </div>
<h3>Infeed & Outfeed Fence:</h3>
<div>
<ul>
<li>Infeed and outfeed fence surfaces are precision ground.</li>
<li>Equipped with an anti-bump rubber to prevent serious bumping of clamp.</li>
</ul>
<p> </p>
<table style="width: 617px;" border="0" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td valign="bottom" width="287">
<p><strong>Specifications:</strong></p>
</td>
<td valign="bottom" width="330">
<p align="center"> </p>
</td>
</tr>
<tr>
<td valign="bottom" width="287">
<p>Cutting Capacity (Thickness x Width)</p>
</td>
<td valign="bottom" width="330">
<p align="center">+45° (60°) ~ 0° ~ -45° (60°)</p>
</td>
</tr>
<tr>
<td valign="bottom" width="287">
<p>Cycle Speed</p>
</td>
<td valign="bottom" width="330">
<p align="center">30 ~ 45 cuts/min</p>
</td>
</tr>
<tr>
<td valign="bottom" width="287">
<p>Saw Blade Size (optional)</p>
</td>
<td valign="bottom" width="330">
<p align="center">20°</p>
</td>
</tr>
<tr>
<td valign="bottom" width="287">
<p>Saw Arbor Diameter</p>
</td>
<td valign="bottom" width="330">
<p align="center">1”</p>
</td>
</tr>
<tr>
<td valign="bottom" width="287">
<p>Saw Blade Speed</p>
</td>
<td valign="bottom" width="330">
<p align="center">3100 RPM</p>
</td>
</tr>
<tr>
<td valign="bottom" width="287">
<p>Dust Exhaust Diameter</p>
</td>
<td valign="bottom" width="330">
<p align="center">Ø4” x (2)</p>
</td>
</tr>
<tr>
<td valign="bottom" width="287">
<p>Motor</p>
</td>
<td valign="bottom" width="330">
<p align="center">7.5 HP</p>
</td>
</tr>
<tr>
<td valign="bottom" width="287">
<p>Table Size</p>
</td>
<td valign="bottom" width="330">
<p align="center">36.2” x 24.8” (920 x 630 mm)</p>
</td>
</tr>
<tr>
<td valign="bottom" width="287">
<p>Net Weight</p>
</td>
<td valign="bottom" width="330">
<p align="center">1190 lbs (540 kg)</p>
</td>
</tr>
<tr>
<td valign="bottom" width="287">
<p>Gross Weight</p>
</td>
<td valign="bottom" width="330">
<p align="center">1455 lbs (660 kg)</p>
</td>
</tr>
<tr>
<td valign="bottom" width="287">
<p>Packing Dimensions (L x W x H)</p>
</td>
<td valign="bottom" width="330">
<p align="center">50.4” x 43.3” x 63” (1280 x 1100 x 1600 mm)</p>
</td>
</tr>
</tbody>
</table>
