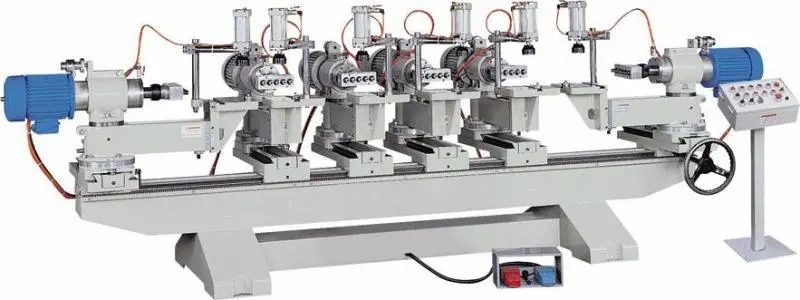

<p>Castaly 4-Head Stile Boring M/C is suitable and affordable for industrial and small workshop use.</p>
<h3>Features:</h3>
<div>
<ul>
<li>Capable of using “multiple drill head."</li>
<li>Pneumatic clamp and drill head travel.</li>
<li>Operated by foot pedal, hands free.</li>
<li>360-degree horizontally swiveling head design allows for side or angular boring by any boring direction.</li>
<li>Working length is easily adjusted through a hand wheel.</li>
<li>Easy adjustment for length and depth of boring.</li>
<li>Easy to operate by simple step on a foot switch air-hydraulic combination system for drill feed movement to afford smooth motions.</li>
<li>Front mounted, centralized control panel.</li>
<li>The boring units are designed with automatic clamping and boring capacity for high-efficiency operations.</li>
<li>The unit is directly driven with a 3 HP motor for non power-loss transmission.</li>
<li>The table can be adjusted up and down, and micro adjustment of the spindle allows for accurate position.</li>
<li>The distance between drills depends on the gear head is adjustable to meet drilling variations.</li>
<li>Cast iron base and table for durable usage.</li>
<li>Can add more drill units with order.</li>
<li>OPTIONAL: Multiple Drill Head.</li>
</ul>
<p> </p>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="233">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="150"> </td>
</tr>
<tr>
<td width="233">
<p>Motor (3 PH) 220/440V</p>
</td>
<td width="150">
<p align="center">3 HP x 4</p>
</td>
</tr>
<tr>
<td width="233">
<p>Drill Speed (RPM)</p>
</td>
<td width="150">
<p align="center">3450</p>
</td>
</tr>
<tr>
<td width="233">
<p>Drill Bit Type</p>
</td>
<td width="150">
<p align="center">7/16" x 14UNC</p>
</td>
</tr>
<tr>
<td width="233">
<p>Spindle Stroke (Max)</p>
</td>
<td width="150">
<p align="center">4"</p>
</td>
</tr>
<tr>
<td width="233">
<p>Table Size (W x L)</p>
</td>
<td width="150">
<p align="center">6" x 6" x 4</p>
</td>
</tr>
<tr>
<td width="233">
<p>Max. Working Length</p>
</td>
<td width="150">
<p align="center">112"</p>
</td>
</tr>
<tr>
<td width="233">
<p>Drill Chuck</p>
</td>
<td width="150">
<p align="center">No</p>
</td>
</tr>
<tr>
<td width="233">
<p>Multi Drill Head Available</p>
</td>
<td width="150">
<p align="center">Yes</p>
</td>
</tr>
<tr>
<td width="233">
<p>Air Clamp</p>
</td>
<td width="150">
<p align="center">4</p>
</td>
</tr>
<tr>
<td width="233">
<p>Standard Spindle</p>
</td>
<td width="150">
<p align="center">(A5L32) X 4</p>
</td>
</tr>
<tr>
<td width="233">
<p>Max Spindle</p>
</td>
<td width="150">
<p align="center">Optional</p>
</td>
</tr>
<tr>
<td width="233">
<p>Min. Drill Dist. (Chuck Type)</p>
</td>
<td width="150">
<p align="center">Variable</p>
</td>
</tr>
<tr>
<td width="233">
<p>N.W.</p>
</td>
<td width="150">
<p align="center">1950 LBS</p>
</td>
</tr>
<tr>
<td width="233">
<p>G.W.</p>
</td>
<td width="150">
<p align="center">2220 LBS</p>
</td>
</tr>
</tbody>
</table>
