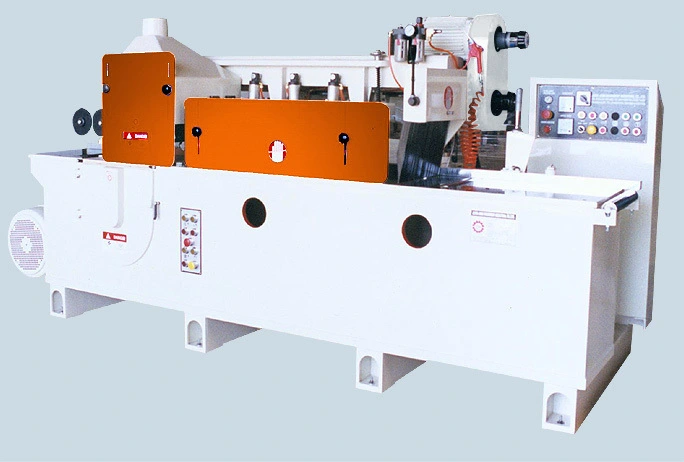

<p>The Castaly 12 1/2" Top & Bottom Moulder, Multiple Rip Saw TRS-3200TB is built with horizontal top and bottom moulder or rip saw heads.</p>
<h3>Features:</h3>
<div>
<ul>
<li>The machine can plane or shape the wood at two surfaces then rip it. Ideal for shutter, moulding etc.</li>
<li>Special order profile hold down & groove table for slat ripping.</li>
<li>Designed to meet the exacting standards required for high quality production line use.</li>
<li>Castaly’s slat rip saws are manufactured to precise tolerances, and feature the newest designs for operator safety and volume production.</li>
<li>All of these features combine to show what a true value these machines are in today’s highly competitive market.</li>
<li>Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge.</li>
<li>Double anti-kickback fingers mounted at the infeed side provide maximum safety protection.</li>
<li>Heavy-duty industrial TEFC motor ensures full depth cutting capacity in all materials.</li>
<li>Ruggedly constructed steel frame for durability and extended machine life.</li>
<li>The variable feed speed allows the machine to meet the cutting requirements of different materials.</li>
<li>Saw head built to precise tolerances ensures accuracy for all straight line rip saw operations.</li>
<li>Powered pneumatic upper & lower pressure rollers for precise cutting.</li>
<li>The saw arbor is manufactured from alloy steel for dependability and anti-fatigue, heat treated, precision ground and balanced providing precise cutting performance.</li>
</ul>
<p> </p>
<div>
<div class="itemdescription">
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td class="xl27" width="151" height="17"><strong>SPECIFICATIONS:</strong></td>
<td class="xl24" width="163"> </td>
</tr>
<tr>
<td class="xl25" height="17">Max. Cutting Width</td>
<td class="xl26" style="text-align: center;"><center>12 1/2"</center></td>
</tr>
<tr>
<td class="xl25" height="17">Max. Cutting Depth</td>
<td class="xl26" style="text-align: center;">9 1/2"</td>
</tr>
<tr>
<td class="xl25" height="17">Min. Workpiece Length</td>
<td class="xl26" style="text-align: center;">10"</td>
</tr>
<tr>
<td class="xl25" height="17">Top Spindle Saw Blade Size</td>
<td class="xl26" style="text-align: center;">10" ~ 14" Dia.</td>
</tr>
<tr>
<td class="xl25" height="17">Bottom Spindle Saw Blade Size</td>
<td class="xl26" style="text-align: center;">10" ~ 16" Dia.</td>
</tr>
<tr>
<td class="xl25" height="17">Top & Bottom Moulder Spindle Speed</td>
<td class="xl26" style="text-align: center;">4000 RPM</td>
</tr>
<tr>
<td class="xl25" height="17">Rip Saw Spindle Length (first to last blade)</td>
<td class="xl26" style="text-align: center;">12 1/2"</td>
</tr>
<tr>
<td class="xl25" height="17">Rip Saw Arbor Diameter (with key)</td>
<td class="xl26" style="text-align: center;">70 mm w 2 Keys</td>
</tr>
<tr>
<td class="xl25" height="17">Top Rip Saw Motor</td>
<td class="xl26" style="text-align: center;">30 HP</td>
</tr>
<tr>
<td class="xl25" height="17">Bottom Rip Saw Motor</td>
<td class="xl26" style="text-align: center;">50 HP</td>
</tr>
<tr>
<td class="xl25" height="17">Feeding Speed (Variable)</td>
<td class="xl26" style="text-align: center;">12 ~ 60 FPM</td>
</tr>
<tr>
<td class="xl25" height="17">Roller & Top Head Elevating Motor</td>
<td class="xl26" style="text-align: center;">1 HP</td>
</tr>
<tr>
<td class="xl25" height="17">Rip Saw Arbor Elevating Motor</td>
<td class="xl26" style="text-align: center;">1/2 HP</td>
</tr>
<tr>
<td class="xl25" height="17">Feed Motor</td>
<td class="xl26" style="text-align: center;">5 HP</td>
</tr>
<tr>
<td class="xl25" height="17">Exhaust Hood Diameter</td>
<td class="xl26" style="text-align: center;">5" x 2</td>
</tr>
<tr>
<td class="xl25" height="17">N.W.</td>
<td class="xl26" style="text-align: center;">7100 LBS</td>
</tr>
<tr>
<td class="xl25" height="17">G.W.</td>
<td class="xl26" style="text-align: center;">8600 LBS</td>
</tr>
