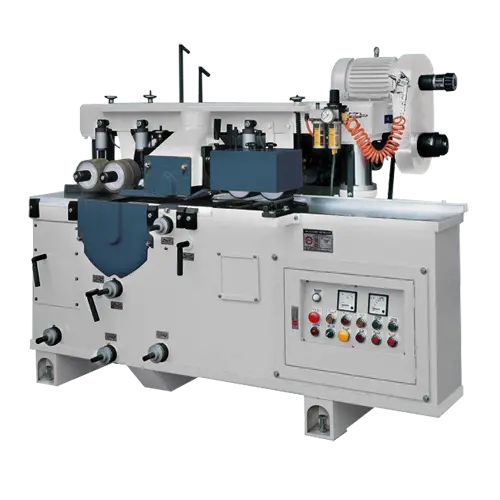

<p>The Castaly 12 1/2" Bottom Moulder, Multiple Rip Saw TRS-3200 is built with horizontal bottom moulder head or rip saw head.</p>
<div>
<h3>Features:</h3>
<div>
<ul>
<li> The machine can plane or shape the wood at two surfaces then rip it. Ideal for shutter, moulding etc.</li>
<li>Special order profile hold down & groove table for slat ripping.</li>
<li>Designed to meet the exacting standards required for high quality production line use.</li>
<li>Castaly’s slat rip saws are manufactured to precise tolerances, and feature the newest designs for operator safety and volume production.</li>
<li>All of these features combine to show what a true value these machines are in today’s highly competitive market.</li>
<li>Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge.</li>
<li>Double anti-kickback fingers mounted at the infeed side provided maximum safety protection.</li>
<li>Heavy-duty industrial TEFC motor ensures full depth cutting capacity in all materials.</li>
<li>Ruggedly constructed steel frame for durability and extended machine life.</li>
<li>The variable feed speed allows the machine to meet the cutting requirements of different materials.</li>
<li>Saw head built to precise tolerances assures accuracy for all straight line rip saw operations.</li>
<li>Powered pneumatic upper & lower pressure rollers for precise cutting.</li>
<li>The saw arbor is manufactured from alloy steel for dependability and anti-fatigue, heat treated, precision ground and balanced providing precise cutting performance.</li>
</ul>
</div>
<p>
</p><p> </p>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td class="xl27" width="151" height="17"><strong>SPECIFICATIONS:</strong></td>
<td class="xl24" style="text-align: center;" width="163"> </td>
</tr>
<tr>
<td class="xl25" height="17">Max. Cutting Width</td>
<td class="xl26" style="text-align: center;"><center>12 1/2"</center></td>
</tr>
<tr>
<td class="xl25" height="17">Max. Cutting Depth</td>
<td class="xl26" style="text-align: center;">4 3/4"</td>
</tr>
<tr>
<td class="xl25" height="17">Min. Workpiece Length</td>
<td class="xl26" style="text-align: center;">10"</td>
</tr>
<tr>
<td class="xl25" height="17">Saw Blade Size</td>
<td class="xl26" style="text-align: center;">10" ~ 16" Dia.</td>
</tr>
<tr>
<td class="xl25" height="17">Rip Saw Spindle Length (first to last blade)</td>
<td class="xl26" style="text-align: center;">12 1/2"</td>
</tr>
<tr>
<td class="xl25" height="17">Rip Saw Arbor Diameter (with key)</td>
<td class="xl26" style="text-align: center;">70 mm with 2 Keys</td>
</tr>
<tr>
<td class="xl25" height="17">Rip Saw Motor</td>
<td class="xl26" style="text-align: center;">30 HP</td>
</tr>
<tr>
<td class="xl25" height="17">Spindle Speed</td>
<td class="xl26" style="text-align: center;">4000 RPM</td>
</tr>
<tr>
<td class="xl25" height="17">Feeding Speed (Variable)</td>
<td class="xl26" style="text-align: center;">12 ~ 60 FPM</td>
</tr>
<tr>
<td class="xl25" height="17">Roller & Top Head Elevating Motor</td>
<td class="xl26" style="text-align: center;">1/2 HP</td>
</tr>
<tr>
<td class="xl25" height="17">Rip Saw Arbor Elevating Motor</td>
<td class="xl26" style="text-align: center;">1/2 HP</td>
</tr>
<tr>
<td class="xl25" height="17">Feed Motor</td>
<td class="xl26" style="text-align: center;">3 HP</td>
</tr>
<tr>
<td class="xl25" height="17">Exhaust Hood Diameter</td>
<td class="xl26" style="text-align: center;">5"</td>
</tr>
<tr>
<td class="xl25" height="17">N.W.</td>
<td class="xl26" style="text-align: center;">3500 LBS</td>
</tr>
<tr>
<td class="xl25" height="17">G.W.</td>
<td class="xl26" style="text-align: center;">4200 LBS</td>
</tr>
</tbody>
</table>
