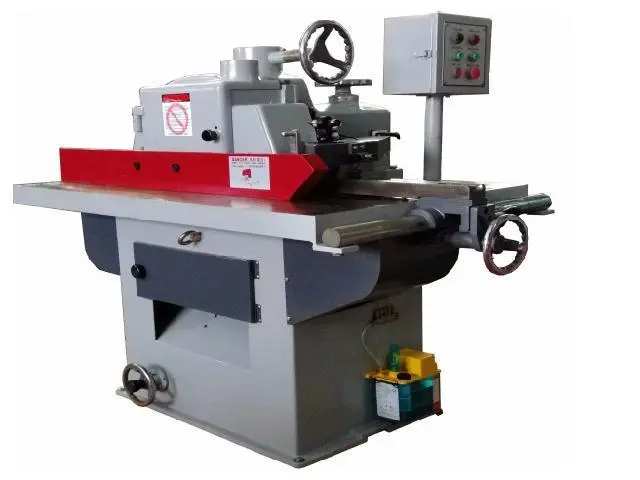

Castaly 16" Single Rip Saw TRS-0016
Have one to sell?
ConditionNew
New
The Castaly line of rip saws are truly comparable to any other machine on the market today.
Features:
Their precision machining and attention to operator safety and the production needs make these machines some of the most cost effective machines available in the world today.
Hard chrome-plated table for maximum wear resistance.
Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge.
Double anti-kickback fingers mounted at the infeed end provides maximum safety protection.
Heavy-duty industrial motor for powerfull cutting capacity.
Ruggedly constructed sheet metal frames for durability usage.
The variable feed speed enables the machine to meet different requirement of work.
V-way track and chain block surface are heat-treated for long wear resistance.
Automatic lubrication to V-Way track facilitates chain running smoothly.
Precision built saw head ensures accuracy for straight line rip saw operations.
The saw arbor is manufactured from NI-Cr-MO alloy steel for durability and anti-fatigue, heat treated, precision ground and balanced providing precise cutting performance.
Four bearing spindle mount ensuring rigidity & long life.
Four pressure rollers for precise cutting of large and small workpieces.
Heavy-duty cast iron table.
SPECIFICATIONS:
Maximum Cutting Depth
5"
Arbor Diameter
1"
Max. Number of Blades Per Spindle
1
Saw Blade Size
10" ~ 16"
Table Dimensions
40" x 70"
Spindle Speed
3600 RPM
Feeding Speed (RPM)
30 ~ 85
Throat Depth (1st Blade)
20"
Main Motor
15 HP
Feed Motor
1 HP
Feed Chain Width
6"
Automatic Lubrication
YES
Minimum Workpiece Length
12"
Exhaust Hood Diameter
4"
N.W.
2600 LBS
G.W.
2900 LBS
The Castaly line of rip saws are truly comparable to any other machine on the market today.
Features:
Their precision machining and attention to operator safety and the production needs make these machines some of the most cost effective machines available in the world today.
Hard chrome-plated table for maximum wear resistance.
Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge.
Double anti-kickback fingers mounted at the infeed end provides maximum safety protection.
Heavy-duty industrial motor for powerfull cutting capacity.
Ruggedly constructed sheet metal frames for durability usage.
The variable feed speed enables the machine to meet different requirement of work.
V-way track and chain block surface are heat-treated for long wear resistance.
Automatic lubrication to V-Way track facilitates chain running smoothly.
Precision built saw head ensures accuracy for straight line rip saw operations.
The saw arbor is manufactured from NI-Cr-MO alloy steel for durability and anti-fatigue, heat treated, precision ground and balanced providing precise cutting performance.
Four bearing spindle mount ensuring rigidity & long life.
Four pressure rollers for precise cutting of large and small workpieces.
Heavy-duty cast iron table.
SPECIFICATIONS:
Maximum Cutting Depth
5"
Arbor Diameter
1"
Max. Number of Blades Per Spindle
1
Saw Blade Size
10" ~ 16"
Table Dimensions
40" x 70"
Spindle Speed
3600 RPM
Feeding Speed (RPM)
30 ~ 85
Throat Depth (1st Blade)
20"
Main Motor
15 HP
Feed Motor
1 HP
Feed Chain Width
6"
Automatic Lubrication
YES
Minimum Workpiece Length
12"
Exhaust Hood Diameter
4"
N.W.
2600 LBS
G.W.
2900 LBS
The Castaly line of rip saws are truly comparable to any other machine on the market today.
SPECIFICATIONS:
Maximum Cutting Depth
5"
Arbor Diameter
1"
Max. Number of Blades Per Spindle
1
Saw Blade Size
10" ~ 16"
Table Dimensions
40" x 70"
Spindle Speed
3600 RPM
Feeding Speed (RPM)
30 ~ 85
Throat Depth (1st Blade)
20"
Main Motor
15 HP
Feed Motor
1 HP
Feed Chain Width
6"
Automatic Lubrication
YES
Minimum Workpiece Length
12"
Exhaust Hood Diameter
4"
N.W.
2600 LBS
G.W.
2900 LBS
