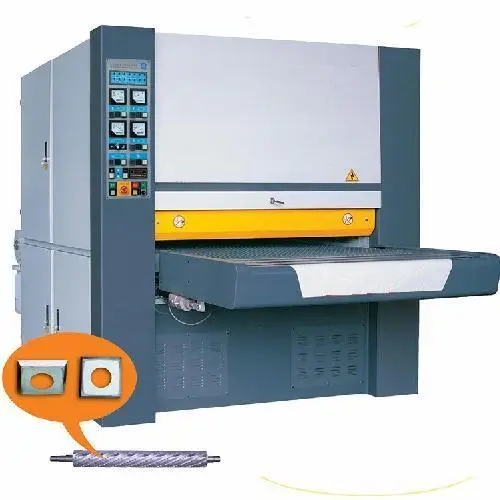

<p>Castaly features many options when it comes to combination planer/sanders. Please review features and specifications of each to find the one that best meets your needs.</p>
<h3>Features:</h3>
<div>
<ul>
<li>This machine is especially designed for tale off heavy material such as glue panel, bend board, rough lumber.</li>
<li>The first station is a knife planer head, followed with a contact drum head at second station, and combination drum & platen head at third station.</li>
<li>Head configuration can be made to meet customer’s requirement.</li>
<li>The spiral planer cutterhead is fitted with 14 x 14 mm, four edge throw away Tungsten Carbide knife inserts, providing superior chip removal rate, minimum noise, and extremely smooth cutting effect.</li>
<li>Changing knife inserts are conveniently made without removing the cutterhead. The spiral cutterhead is precision machined from special aluminum alloy steel by CNC machine center, tempered and precision ground.</li>
<li>Anti-kickback fingers, mounted at the infeed of the machine, this anti-kickback finger gives a safety guard for the operator.</li>
<li>Insufficient pressure protection, in case insufficient working air pressure occurs, the machine brakes automatically for safety guard.</li>
<li>Irreversible running of pressure roller, runs a single direction only, giving an additional safety guard for panel kickback.</li>
<li>Automatic elevation of conveyor table (micro-computer controlled with digital readout), it accurately displays the position of the conveyor table and automatically moves to the setting thickness for planning, sanding.</li>
<li>Panel cleaning brush roller; built at outfeed end of the machine, this cleaning brush roller cleana the powder on the sanded panel.</li>
<li>Hold-down plate is hard chrome treated for maximum wear resistance.</li>
</ul>
<p> </p>
<table style="width: 431px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="166">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="133"> </td>
</tr>
<tr>
<td>
<p>Working Width</p>
</td>
<td width="133">
<p align="center">52"</p>
</td>
</tr>
<tr>
<td>
<p>Working Thickness</p>
</td>
<td width="133">
<p align="center">5"</p>
</td>
</tr>
<tr>
<td>
<p>Min. Working Length</p>
</td>
<td width="133">
<p align="center">14½"</p>
</td>
</tr>
<tr>
<td>
<p>Main Motor</p>
<p>(Standard)</p>
</td>
<td width="133">
<p align="center">30, 25 HP</p>
</td>
</tr>
<tr>
<td>
<p>Feeding Motor</p>
</td>
<td width="133">
<p align="center">5 HP </p>
</td>
</tr>
<tr>
<td>
<p>Table Hoist Motor</p>
</td>
<td width="133">
<p align="center">1 HP</p>
</td>
</tr>
<tr>
<td>
<p>Feeding Speed</p>
<p>(Variable)</p>
</td>
<td width="133">
<p align="center">10 ~ 53 FPM</p>
</td>
</tr>
<tr>
<td>
<p>Sanding Belt Size</p>
</td>
<td width="133">
<p align="center">52" x 84"</p>
</td>
</tr>
<tr>
<td>
<p>Machine Size</p>
<p>(L x W x H)</p>
</td>
<td width="133">
<p align="center">107" x 87" x 80"</p>
</td>
</tr>
<tr>
<td>
<p>N.W.</p>
</td>
<td width="133">
<p align="center">7700 LBS</p>
</td>
</tr>
<tr>
<td>
<p>G.W.</p>
</td>
<td width="133">
<p align="center">8800 LBS</p>
</td>
</tr>
</tbody>
</table>
</div>
