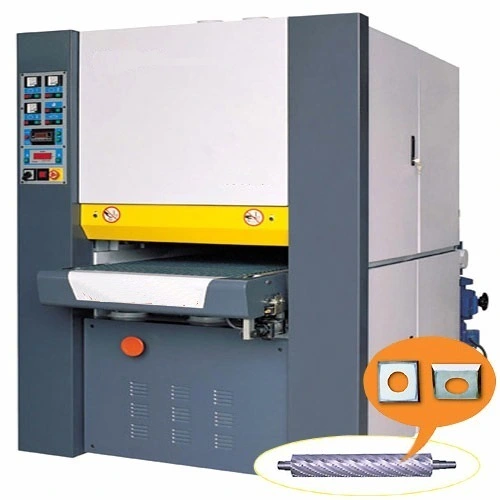

Castaly 43" x 103" One Planer, Two Sanders WS-NDA1100

<p>Castaly features many options when it comes to combination planer/sanders. Please review features and specifications of each to find the one that best meets your needs.</p> <h3>Features:</h3> <div> <ul> <li>This machine is especially designed for tale off heavy material such as glue panel, bend board, rough lumber.</li> <li>The first station is a knife planer head, followed with a drum as second station and then combination drum & platen head at third station.</li> <li>Head configuration can be made to meet customer's requirement.</li> <li>The spiral planer cutterhead is fitted with 14 x 14 mm, four edge throw away Tungsten Carbide knife inserts, providing superior chip removal rate, minimum noise, and extremely smooth cutting effect.</li> <li>Changing knife inserts are conveniently done without removing the cutterhead. The spiral cutterhead is precision machined from special aluminum alloy steel by CNC machine center, tempered and precision ground.</li> <li>Anti-kickback fingers, mounted at the infeed of the machine, this anti-kickback finger gives a safety guard for the operator.</li> <li>Insufficient pressure protection, in case insufficient working air pressure occurs, the machine brakes automatically for safety guard.</li> <li>Irreversible running of pressure roller, runs a single direction only, giving an additional safety guard for panel kickback.</li> <li>Automatic elevation of conveyor table (micro-computer controlled with digital readout), it accurately displays the position of the conveyor table and automatically moves to the setting thickness for planning, sanding.</li> <li>Panel cleaning brush roller; built at outfeed end of the machine, this cleaning brush roller cleans the powder on the sanded panel.</li> <li>Hold-down plate is hard chrome treated for maximum wear resistance.</li> </ul> <p> </p> <table style="width: 333px;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr> <td width="165"> <p><strong>SPECIFICATIONS:</strong></p> </td> <td width="168"> </td> </tr> <tr> <td> <p>Working Width</p> </td> <td width="168"> <p align="center">43"</p> </td> </tr> <tr> <td> <p>Working Thickness</p> </td> <td width="168"> <p align="center">4"</p> </td> </tr> <tr> <td> <p>Min. Working Length</p> </td> <td width="168"> <p align="center">18½"</p> </td> </tr> <tr> <td> <p>Main Motor</p> <p>(Standard)</p> </td> <td width="168"> <p align="center">25, 25, 20 HP</p> </td> </tr> <tr> <td> <p>Feeding Motor</p> </td> <td width="168"> <p align="center">7½ HP </p> </td> </tr> <tr> <td> <p>Table Hoist Motor</p> </td> <td width="168"> <p align="center">1 HP</p> </td> </tr> <tr> <td> <p>Feeding Speed</p> <p>(Variable)</p> </td> <td width="168"> <p align="center">10 ~ 53 FPM</p> </td> </tr> <tr> <td> <p>Sanding Belt Size</p> </td> <td width="168"> <p align="center">43" x 98"</p> </td> </tr> <tr> <td> <p>Machine Size</p> <p>(L x W x H)</p> </td> <td width="168"> <p align="center">121" x 81" x 90"</p> </td> </tr> <tr> <td> <p>N.W.</p> </td> <td width="168"> <p align="center">11,100 LBS</p> </td> </tr> <tr> <td> <p>G.W.</p> </td> <td width="168"> <p align="center">12,200 LBS</p> </td> </tr> </tbody> </table> </div>
