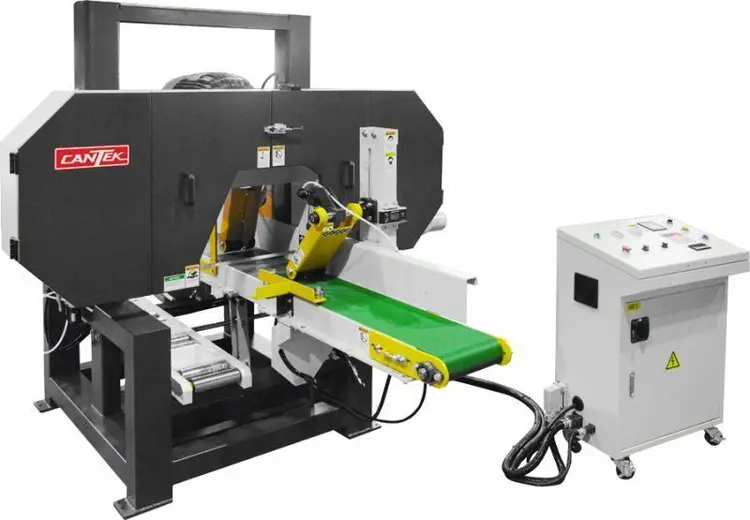

Cantek Tilting Bed Horizontal Resaw HP300PBX

<p>Cantek America offers various horizontal resaw options. Review features and specifications of each machine to find the one that meets your needs.</p> <h3>Features:</h3> <div> <ul> <li>Heavy-duty tubular steel frame.</li> <li>Solid steel saw wheels – precision machined and balanced.</li> <li>Motorized thickness (blade height) adjustment with digital position readout.</li> <li>Hydraulic blade tensioning.</li> <li>Precision saw guide system – with moveable left guide to move as close as desired to the material being cut for improved cut accuracy.</li> <li>Pneumatic pressurized top hold down rollers on feed conveyor.</li> <li>Heavy-duty infeed guide-fence on conveyor right including holdover system.</li> <li>Reinforced urethane conveyor belt for positive feeding and long life including.</li> <li>Manually tilting feed belt for angle cutting from 0 – 45^{o <br />}</li> <li>Variable feed speed by VFD (frequency inverter).</li> <li>Motorized return conveyor belt allows material to be returned to the operator to be re-cut.</li> <li>Air mist – blade cooling system.</li> <li>Y Delta – low amperage starter on the saw motor.</li> <li>Electrical components to UL/CSA standards – 460/3/60 electrics.</li> <li>Smooth infeed system (limit switch & timer 1 to 3 seconds).</li> </ul> <p> </p> <table> <tbody> <tr> <td width="232">Max. Workpiece Size</td> <td style="text-align: center;" width="144">300 mm x 300 mm</td> </tr> <tr> <td width="232">Distance from Blade to Conveyor</td> <td style="text-align: center;" width="144">4 – 250 mm</td> </tr> <tr> <td width="232">Conveyor Belt Size</td> <td style="text-align: center;" width="144">11.2” x 215” (285 mm x 5470 mm)</td> </tr> <tr> <td width="232">Machine Wheel Dimensions</td> <td style="text-align: center;" width="144">28” Dia. x 2” Wide</td> </tr> <tr> <td width="232">Main Motor (Resaw Wheels)</td> <td style="text-align: center;" width="144">30 HP</td> </tr> <tr> <td width="232">Conveyor Motor</td> <td style="text-align: center;" width="144">3 HP</td> </tr> <tr> <td width="232">Blade Elevation Motor</td> <td style="text-align: center;" width="144">¼ HP</td> </tr> <tr> <td width="232">Variable Feed Speeds</td> <td style="text-align: center;" width="144">0~120 FPM (0~37 m/min)</td> </tr> <tr> <td width="232">Dust Hood Diameter</td> <td style="text-align: center;" width="144">2 x 4”</td> </tr> <tr> <td width="232">Saw Blade Size (Normal)</td> <td style="text-align: center;" width="144">180” (L) x 2” (W)</td> </tr> <tr> <td width="232">Feed Belts – Bed Angle</td> <td style="text-align: center;" width="144">0 ~ 45^o</td> </tr> <tr> <td width="232">Voltage – Stock Machine</td> <td style="text-align: center;" width="144">460/3/60 electrics</td> </tr> <tr> <td width="232">Machine Weight</td> <td style="text-align: center;" width="144">3960 lbs (1800 kgs)</td> </tr> <tr> <td width="232">Shipping Weight</td> <td style="text-align: center;" width="144">4400 lbs (2000 kgs)</td> </tr> <tr> <td width="232">Shipping Dimensions</td> <td style="text-align: center;" width="144">113” x 90” x 85” (2850 x 2270 x 2160 mm)</td> </tr> </tbody> </table> </div>
