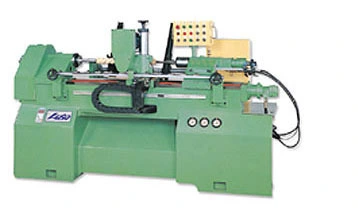

<p>Castaly 30" Spiral, Groove Lathe CL-330S is suitable for cutting straight and spiral grooves for the straight shaped or tapered spindle.</p>
<h3>Features:</h3>
<div>
<ul>
<li>Suitable for cutting straight and spiral grooves for the straight shaped or tapered spindle.</li>
<li>The machine employs rotary air cylinder incorporating with gear for accurate indexing of grooves.</li>
<li>The cutter carriage's forward and backward movements are hydraulically operated with feed speed control providing a smooth motion and stable cutting performance.</li>
<li>The number of the grooves for the cutter strokes can be set at the control box.</li>
<li>A frequency inverter controls the cutter variable speed turning for best results.</li>
<li>The hopper variable feed system allows the operation to be fully automatic.</li>
<li>Equipped with automatic lubricator to lubricate the slide ways and keeps the slide ways in the optimal lubricated condition.</li>
<li>It can cut straight or spiral grooves while it is turning. Twenty-four grooves is the maximum number that can be cut.</li>
<li>The hopper feed system delivers the next piece of stock to the centering device after each turning is accomplished, thus providing a fully automatic operation.</li>
<li>Router bits or shaper cutter can be used.</li>
<li>Industrial full power motor for maximum cutting capacity.</li>
<li>Precision sealed long-life bearing.</li>
<li>Heavy cast iron frames and table for durability usage.</li>
</ul>
<p> </p>
<table style="width: 361px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="191">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="170"> </td>
</tr>
<tr>
<td width="191">
<p>Max. Between Center</p>
</td>
<td width="170">
<p align="center">30"</p>
</td>
</tr>
<tr>
<td width="191">
<p>Max. Finish Product Dia.</p>
</td>
<td width="170">
<p align="center">4"</p>
</td>
</tr>
<tr>
<td width="191">
<p>Spindle Speed</p>
</td>
<td width="170">
<p align="center">0 ~ 2000 RPM</p>
</td>
</tr>
<tr>
<td width="191">
<p>Main Motor</p>
</td>
<td width="170">
<p align="center">2 HP</p>
</td>
</tr>
<tr>
<td width="191">
<p>Hydraulic Motor</p>
</td>
<td width="170">
<p align="center">3 HP</p>
</td>
</tr>
<tr>
<td width="191">
<p>Template Copier</p>
</td>
<td width="170">
<p align="center">One</p>
</td>
</tr>
<tr>
<td width="191">
<p>Model Copier</p>
</td>
<td width="170">
<p align="center">---</p>
</td>
</tr>
<tr>
<td width="191">
<p>Max. Copier Travel</p>
</td>
<td width="170">
<p align="center">---</p>
</td>
</tr>
<tr>
<td width="191">
<p>Total Cutting Knife</p>
</td>
<td width="170">
<p align="center">1</p>
</td>
</tr>
<tr>
<td width="191">
<p>Feed Speed</p>
</td>
<td width="170">
<p align="center">Variable</p>
</td>
</tr>
<tr>
<td width="191">
<p>Operation</p>
</td>
<td width="170">
<p align="center">Manu, Auto</p>
</td>
</tr>
<tr>
<td width="191">
<p>N.W.</p>
</td>
<td width="170">
<p align="center">2970 LBS</p>
</td>
</tr>
<tr>
<td width="191">
<p>G.W.</p>
</td>
<td width="170">
<p align="center">3630 LBS</p>
</td>
</tr>
</tbody>
</table>
