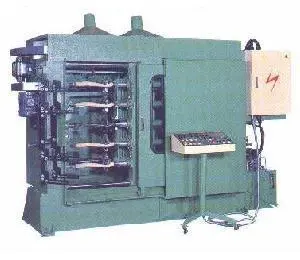

<p>Castaly Auto Copy Lathe with Sander CL-1006S runs automatic continual cycles from feeding to finish.</p>
<h3>Features:</h3>
<div>
<ul>
<li>Uses a template to make easy duplicate copy performance.</li>
<li>Specially designed for processing wood under the length of 39 1/2" and diameter of 8 1/4".</li>
<li>Runs automatic continual cycles from feeding to finish.</li>
<li>Variable cutting speed controls and uses hydraulic power to get best driving and cutting force.</li>
<li>Performs exact positioning setting for wood materials and operates very efficiently.</li>
<li>Besides the two rough cutters, the machine also coordinates with profile-typed blades for the fine finish shape cutting.</li>
<li>The centralized control panel provides convenient operation of the machine.</li>
<li>Industrial full power motor for maximum cutting capacity.</li>
<li>Precision sealed long-life bearing.</li>
<li>Heavy cast iron frames and table for durability usage.</li>
</ul>
<p> </p>
<table style="width: 425px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="191">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="234"> </td>
</tr>
<tr>
<td width="191">
<p>Max. Working Length</p>
</td>
<td width="234">
<p align="center">6 3/8" ~ 39 1/2"</p>
</td>
</tr>
<tr>
<td width="191">
<p>Max. Working Diameter</p>
</td>
<td width="234">
<p align="center">1 1/8" ~ 8 1/4"</p>
</td>
</tr>
<tr>
<td width="191">
<p>Turning Motor</p>
</td>
<td width="234">
<p align="center">10 HP x 2</p>
</td>
</tr>
<tr>
<td width="191">
<p>Hydraulic Motor</p>
</td>
<td width="234">
<p align="center">3 HP x 1</p>
</td>
</tr>
<tr>
<td width="191">
<p>Sander Motor</p>
</td>
<td width="234">
<p align="center">1 HP x 2</p>
</td>
</tr>
<tr>
<td width="191">
<p>Cutting Circle</p>
</td>
<td width="234">
<p align="center">2 ~ 12 Times/ Min.</p>
</td>
</tr>
<tr>
<td width="191">
<p>Main Spindle Speed</p>
</td>
<td width="234">
<p align="center">2000 ~ 6000 RPM (var)</p>
</td>
</tr>
<tr>
<td width="191">
<p>Electrical Control Style</p>
</td>
<td width="234">
<p align="center">By AC 220V Relay Control</p>
</td>
</tr>
<tr>
<td width="191">
<p>Machine Dimensions</p>
</td>
<td width="234">
<p align="center">120" x 47" x 110"</p>
</td>
</tr>
<tr>
<td width="191">
<p>N.W.</p>
</td>
<td width="234">
<p align="center">6240 LBS</p>
</td>
</tr>
<tr>
<td width="191">
<p>G.W.</p>
</td>
<td width="234">
<p align="center">6900 LBS</p>
</td>
</tr>
</tbody>
</table>
