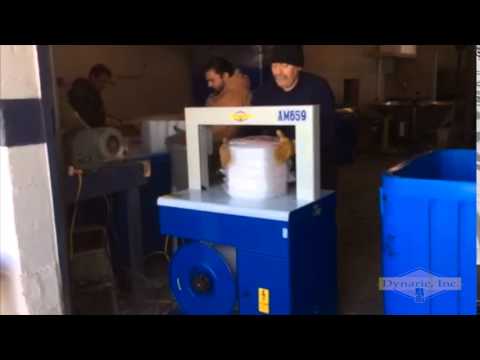

Dynaric, Inc. High Speed Automatic Strapping Machine AM659
Have one to sell?
ConditionNew
New
The AM659 is a high speed, efficient automatic heat seal machine strapper that is designed to perform in just about any environment. Known for it’s performance and reliability, the AM659 strapper is becoming the “Must Have” strapping machine in industries and applications like mail/mail trays/mail tubs, laundry/linen, lumber, corrugated, box/containers and pharmaceutical totes.
The AM659 can operate using 9 mm and 12 mm wide plastic strap. Because of its ability to use many sizes of strap the AM659 enables customers to choose the best Dynaric plastic strap for their budget and packaging requirements.The AM659 has many standard features that include automatic coil feed system, strap loop ejector, short feed detector, refeed system and precision electronic tension control. These user friendly features combine to increase strapping performance and reliability, as well as providing ease of operation for the equipment operator.
Features and Benefits:
Servo motors for precise performance and elimination of belts, clutches and pulleys.
Wide range electronic tension control
Adjustable strap heat seal dwell time for optimum seal joint efficiency
Applies 50 straps/minute
Automatic coil feed system for ease of start up
End of strap sensor and strap loop ejector
Strap re-feed system in case of a short feed
Standard foot pedal activator and start cycle push button
Many arch sizes available 650 mm W x 400 mm H to 2650 mm W x 1200 mm H
Specifications:
Cycle Time:
50 straps per minute
Tension Range:
2.2-121 lbs.
Strap Width:
9mm or 12mm
Sealing Method:
Heating Element
Reel Inside Diameter:
200, 230, 280 mm (specified)
Power Supply:
110/220/230/240V,50/60Hz,1PH
Power Consumption:
0.5 kw
Standard Arch Size:
Extended Arch Size:
W 650 x H 400 mm
W 1450 x H 800 mm
Layout Dimension:
L 933 x W 577 x H 1327 mm*
Table Height:
800mm
Machine Weight:
Depended on arch size
573 lbs.
