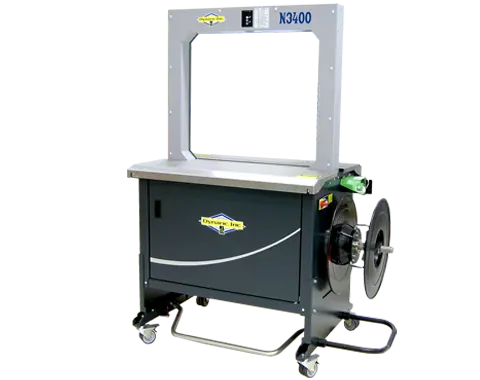

<p>The Fast Banding, N3400 Strapping Machine is equipped standard 120v power to operate the reliable 24 volt direct drive servo motors. Servo Motors use less energy to operate over a standard electric motor and they provide incredible reliability, reducing the amount of moving parts and wear items, saving you money by reducing machine and production downtime.</p>
<p>For routine maintenance or cleaning, the strap path can be easily opened without tools with the new DAT (Direct Access Technology) system. With a pull of a lever the DAT system opens the machine strap path allowing you to perform routine cleaning of the strapping unit and strap track. This keeps machine downtime to a minimal!</p>
<p>To further decrease downtime, the FAST N3400 Banding Strapping Machine can utilize Dynaric XL coils. Dynaric XL coils are produced with the same high quality non-metallic resin used in our entire line of plastic strap. What our XL coils do have that the others coils don’t is the extra footage per coil. Less coil changes + less production down time = Quicker Return on Investment!</p>
<div>Features and Benefits:</div>
<div>
<ul>
<li>Up to 55 cycles per minute, depending on tension setting and package size</li>
<li>Wear-free, <em>Energy Saving </em>24VDC direct-drive motors</li>
<li>Wear-free strap frame with stainless steel guides</li>
<li>ASLF 'Anti-Strap-Loss-Function' constant strap control</li>
<li>Power switch with lockout</li>
<li>Automatic strap feed</li>
<li>Strap width 5 - 12 mm</li>
<li>Strap end detection system with automatic discharge of remaining strap</li>
<li>Internal dispenser</li>
<li>The exclusive eject function avoids strap jam</li>
<li>Operation terminal with soft button</li>
<li>Automatic cycle start by tabletop sensor</li>
<li>Footbar at the operator side</li>
<li>Adjustable torque controlled strap tension</li>
<li>MFT 'Mono-Frame-Technology'</li>
<li>Power connection located at the top of the arch or the bottom of the machine</li>
<li>Table height steplessly adjustable</li>
<li>Hinged removable tabletops</li>
</ul>
<p> </p>
<table border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td valign="top" width="149">
<p><strong>Specifications:</strong></p>
</td>
<td style="text-align: center;" valign="top" width="293"> </td>
</tr>
<tr>
<td valign="top" width="149">
<p>Overall Width:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>32.5” (828mm)</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Overall Length:</p>
<p> </p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>37.6” (956mm)</p>
<p>47.6“ (1210mm) with external dispenser</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Overall Height:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>61.6 - 66.3” (1565 - 1685mm)</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Table Height:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>31.3 - 35.8” (795 - 910mm)</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Weight:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>386 lbs. (175kg)</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Cycle Time:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>Up to 55 cycles per minute</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Cycle Initiation:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>Photo eye sensor or footbar</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Standard Arch Size:</p>
<p>Optional Arch Size:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>600mm(W) x 600mm(H)</p>
<p>800mm(W) x 400mm(H)</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Strap Size:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>1/4" - 1/2" (5mm - 12mm)</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Package Size:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>Max. Governed By Arch</p>
<p>Min. 1.5" H x 3" W</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Tension:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>Adjustable electronic control</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Seal Head Location:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>Bottom</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Sealing Method:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>Heat Seal</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Mobility:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>3" Casters</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Dispenser:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>Internally or externally located-</p>
<p>8" or 9"I. D./8" Face/18"O.D.</p>
</td>
</tr>
<tr>
<td valign="top" width="149">
<p>Power:</p>
</td>
<td style="text-align: center;" valign="top" width="293">
<p>120 Volt Single Phase</p>
</td>
</tr>
</tbody>
</table>
</div>
