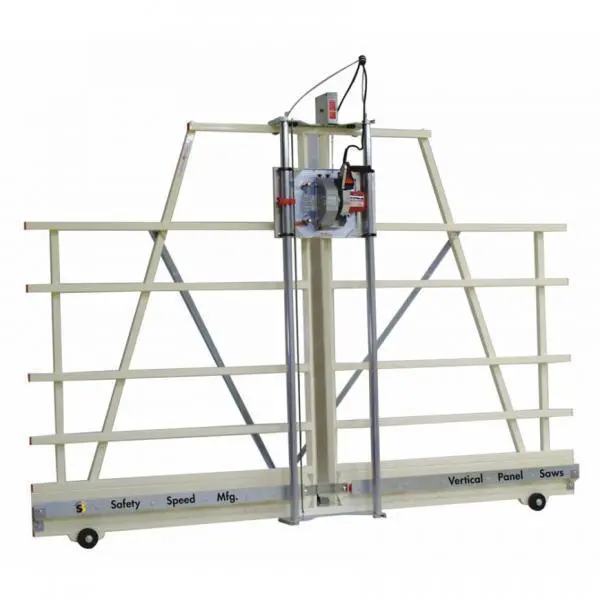

<p>The Safety Speed H6 Panel Saw provide a 74″ crosscut, ideal for cutting a 10′ X 6′ piece of material, up to 1.75″ thick while only occupying 30 square feet of floor space. Photos are shown with a stand, and wheels which are optional accessories. A motor made by Milwaukee Tool is currently used on the H6 vertical saw. The only differences between the H6 machine and our other “H-Series machines” is that the H4 variation cuts material up to 50″ tall, while the H5 variation cuts material up to 64″ tall.</p>
<h3>Standard Equipment:</h3>
<!--StartFragment-->
<ul>
<li>Zinc plated 1¾”steel guide tubes.</li>
<li>4 Nylatron roller bearing systems.</li>
<li>Milwaukee Tool Motor</li>
<li>Adjustable vertical and horizontal rulers.</li>
<li>Quick change from vertical to horizontal cutting.</li>
<li>Thin material pressure guard.</li>
<li>Injection-molded plastic material rollers.</li>
<li>Spring loaded counter balance system.</li>
<li>Integrated dust collection bonnet.</li>
<li>Extended warranty.</li>
<li>TUV certified to UL/CSA standards</li>
</ul>
<p></p>
<table>
<tbody><tr>
<td width="195">
<p><b>Specifications:</b></p>
</td>
<td width="279">
</td>
</tr>
<tr>
<td width="195">
<p>Weight</p>
</td>
<td width="279">
<p>359 lbs</p>
</td>
</tr>
<tr>
<td width="195">
<p>Dimensions</p>
</td>
<td width="279">
<p>120 × 11 × 95 in</p>
</td>
</tr>
<tr>
<td width="195">
<p>Max. Crosscut</p>
</td>
<td width="279">
<p>74"/1850mm</p>
</td>
</tr>
<tr>
<td width="195">
<p>Max. Rip Cut</p>
</td>
<td width="279">
<p>Unlimited</p>
</td>
</tr>
<tr>
<td width="195">
<p>Cut Depth</p>
</td>
<td width="279">
<p>1 ¾"/45mm</p>
</td>
</tr>
<tr>
<td width="195">
<p>Cut Accuracy</p>
</td>
<td width="279">
<p>1/32"/.8mm</p>
</td>
</tr>
<tr>
<td width="195">
<p>Frame Length</p>
</td>
<td width="279">
<p>120"/3050mm</p>
</td>
</tr>
<tr>
<td width="195">
<p>Daily Usage</p>
</td>
<td width="279">
<p>1-3 Hours</p>
</td>
</tr>
<tr>
<td width="195">
<p>Rollers</p>
</td>
<td width="279">
<p>14</p>
</td>
</tr>
<tr>
<td width="195">
<p>Saw Blade Diameter</p>
</td>
<td width="279">
<p>8"/210mm</p>
</td>
</tr>
<tr>
<td width="195">
<p>Motor Amperage and Volts</p>
</td>
<td width="279">
<p>15 amp, 120 Volt, 7.5 amp, 220 Volt</p>
</td>
</tr>
<tr>
<td width="195">
<p>Motor Manufacturer</p>
</td>
<td width="279">
<p>Milwaukee Tool</p>
</td>
</tr>
</tbody></table>
