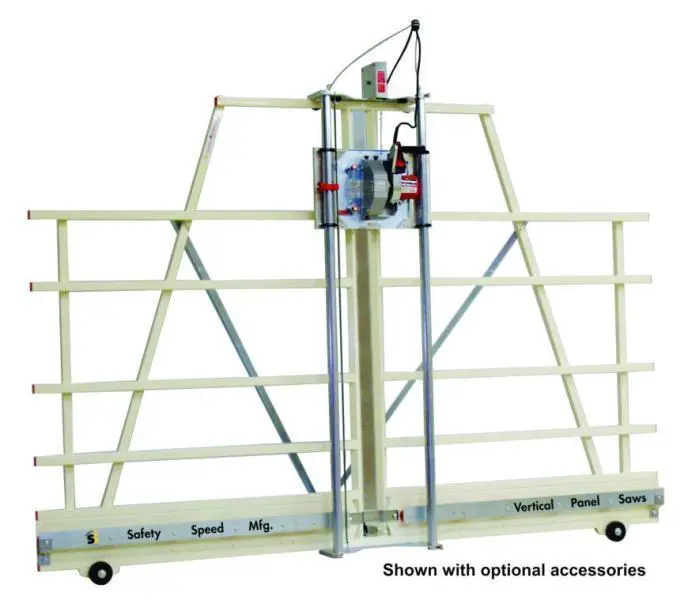

<p>Featuring a 10′ frame, and 64″maximum crosscut with an unlimited rip cut, the Safety Speed H5 Panel Saw is a preferred solution for cabinet and furniture makers. The only difference between this model and our H4 and H6 models are that they provide 50″, and 74″ maximum crosscuts. Photos are shown with a stand, and wheels which are optional accessories.</p>
<p><!--StartFragment-->Our flagship H5 panel saws are ideally suited for customers looking for a
full sized vertical panel saw at a very affordable price. This saw has a
crosscutting height of 64″ while delivering an accuracy of 1/32″
straight and square. The only difference between this model and our H4 and H6 models are that the they provide 50″, and 74″ maximum crosscuts.<!--EndFragment--></p>
<h3>Standard Equipment:</h3>
<!--StartFragment-->
<ul>
<li>Zinc plated 1 ¾”steel guide tubes.</li>
<li>Milwaukee Tool motor</li>
<li>4 Nylatron roller bearing systems.</li>
<li>Adjustable vertical and horizontal rulers.</li>
<li>Quick change from vertical to horizontal cutting.</li>
<li>Thin material pressure guard.</li>
<li>Injection-molded plastic material rollers.</li>
<li>Spring loaded counter balance system.</li>
<li>Integrated dust collection bonnet.</li>
<li>Extended warranty.</li>
<li>TUV certified to UL/CSA standards</li>
</ul>
<!--EndFragment--><br><p></p>
<p></p>
<p></p>
<p></p>
<table>
<tbody><tr>
<td width="201">
<p><b>Specifications:</b></p>
</td>
<td width="285">
</td>
</tr>
<tr>
<td width="201">
<p>Weight</p>
</td>
<td width="285">
<p>298 lbs</p>
</td>
</tr>
<tr>
<td width="201">
<p>Dimensions</p>
</td>
<td width="285">
<p>120 × 11 × 83 in</p>
</td>
</tr>
<tr>
<td width="201">
<p>Max. Crosscut</p>
</td>
<td width="285">
<p>64"/1625mm</p>
</td>
</tr>
<tr>
<td width="201">
<p>Max. Rip Cut</p>
</td>
<td width="285">
<p>Unlimited</p>
</td>
</tr>
<tr>
<td width="201">
<p>Cut Depth</p>
</td>
<td width="285">
<p>1 ¾"/45mm</p>
</td>
</tr>
<tr>
<td width="201">
<p>Cut Accuracy</p>
</td>
<td width="285">
<p>1/32"/.8mm</p>
</td>
</tr>
<tr>
<td width="201">
<p>Frame Length</p>
</td>
<td width="285">
<p>120"/3050mm</p>
</td>
</tr>
<tr>
<td width="201">
<p>Daily Usage</p>
</td>
<td width="285">
<p>1-3 Hours</p>
</td>
</tr>
<tr>
<td width="201">
<p>Rollers</p>
</td>
<td width="285">
<p>14</p>
</td>
</tr>
<tr>
<td width="201">
<p>Saw Blade Diameter</p>
</td>
<td width="285">
<p>8"/210mm</p>
</td>
</tr>
<tr>
<td width="201">
<p>Motor Amperage and Volt</p>
</td>
<td width="285">
<p>15 amps, 120 Volt, 7.5 amps, 220 Volt</p>
</td>
</tr>
<tr>
<td width="201">
<p>Motor Manufacturer</p>
</td>
<td width="285">
<p>Milwaukee Tool</p>
</td>
</tr>
</tbody></table>
