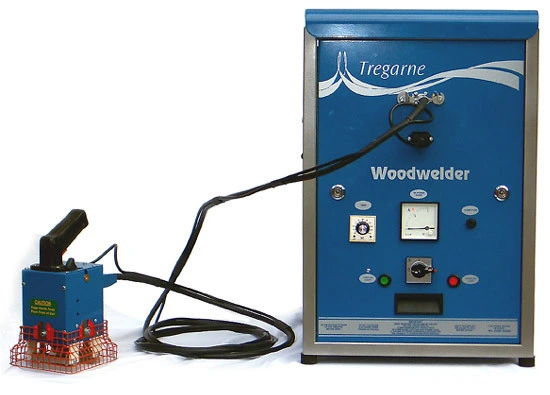

<p><strong>WELD GLUE JOINTS IN SECONDS!!</strong> The Tregarne Woodwelder has been used in the woodworking industry for over 30 years. The R.F. generator produces radio waves, via a pair of triode valves. The R.F. is then modified to 27 megahertz and passed down the coaxial cable to the hand gun. The electrodes on the hand gun are placed over the glue line and when the trigger on the hand gun is activated the radio waves pass into the glue line. The Radio waves vibrate the water molecules in the glue, this vibration causes heat and the heat sets off the glue, all within 5 seconds.</p>
<h3>Features:</h3>
<ul>
<li>Tough construction of all components.</li>
<li>Adjustable power level on hand gun.</li>
<li>Timer for adjustable cure length with "elapsed" buzzer.</li>
<li>Easily visible power needle.</li>
<li>Guard for electrodes.</li>
<li>Spare set of electrodes.</li>
<li>Starter pack of glue.</li>
<li>Support for hand gun.</li>
</ul>
<p> </p>
<h4>Specifications:</h4>
<div>
<ul>
<li>Supply: 240 volt / 50hz (standard 13-amp 3-pin plug)</li>
<li>Generator frequency: Nominal 27.2 Mhz</li>
<li>Size: 66 x 43 x 44cm (H x W x D)</li>
<li>Weight: 55kg</li>
<li>Curing speed: 3 - 10 seconds per weld</li>
<li>Penetration: 50mm effective</li>
<li>Output: 0.5 - 0.6 amps at 2400 volts (internal HT) on load</li>
<li>Finish: Hardwearing powder coated finish</li>
<li>Electrical Safety: Cabinet and fittings are fully earthed. Cutout switch isolates main power if rear access panel is removed. 10 amp panel-mounted fuse for protection.</li>
<li>Hand gun specification: Lightweight, easy to use hand gun. Incorporates on/off trigger, thumb-operated fine tuning control and R.F. power indicator meter. Supplied with 2 sets of electrodes.</li>
</ul>
