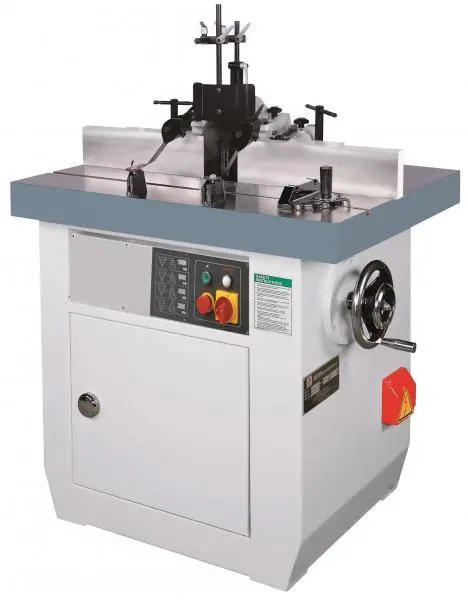

Castaly 1 1/4" Industry Shaper SP-735
Have one to sell?
ConditionNew
New
Castaly 1 1/4" Industry Shaper SP-735 is one of several Industry Shapers offered. Please see features and specifications of each to find the one that best meets your requirements.
Features:
Designed for heavy industrial work.
Industrial full power motor for maximum cutting capacity.
Quick-change spindles.
Forward / reverse switch.
Individual two side micro adjustable fence.
Precision ground large cast iron table.
Three spindle speeds for versatile cutting.
Industrial full power motor for heavy cutting capacity.
Sealed long-life ball bearing.
Metal 4” dust hood.
Heavy sheet metal cabinet base for durability usage.
Magnetic control for overload protection.
SPECIFICATIONS:
Table Sizes
27 ½” x 35 ½”
Fence Sizes
5" x 13 ½”
Height of Working Table
33 ½”
Table Insert Diameter
6 ½”, 8 ½”
Spindle Dimensions:
Diameter
1", 1 ¼”
Length under Nut
4 ½”
Stroke
5"
Max. Height under Table
4 ¼”
Speed (RPM)
3000/ 4500/ 7500/ 10000
Motor
5 HP, 3 PH
N.W.
690 LBS
G.W.
860 LBS
