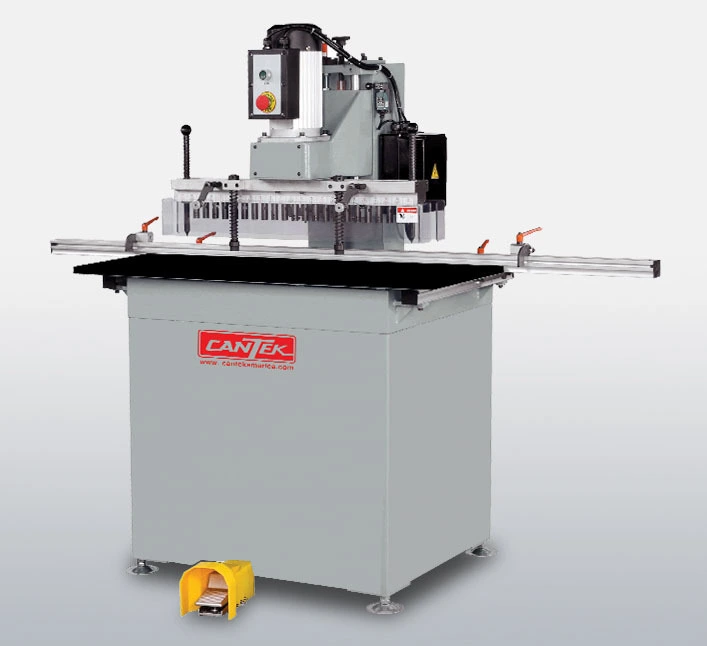

Cantek 21-Spindle Line Boring Machine JB21P

<p><!--StartFragment-->The Cantek JB21P Line Boring Machine is designed to speed up your line&nbsp;drilling operations. It has a total of 21-spindles based on a 32 mm&nbsp;centers. The spring-loaded index pin allows for accurate and convenient&nbsp; continuous line drilling operations. The precision rear aluminum fence&nbsp;with linear scale and (2) flip stops allow for precise and convenient&nbsp;setup. The complete back fence can be adjusted for various&nbsp;measurements&nbsp;from the edge of the panel to the holes. The precision boring head has&nbsp;interlocking steel gears with alternating spindles and accepts industry&nbsp;standard boring bits with 10mm shank. The convenient foot pedal&nbsp;initiates the drilling cycle so your hands can quickly adjust the&nbsp;workpiece to the next operation. The drilling unit moves up and down on&nbsp;high carbon anti-friction steel shafts with linear bearing for&nbsp;effortless movement.<!--EndFragment--></p> <p></p> <h3>Features:</h3> <div> <ul> <li>21-spindles driven by steel gears.</li> <li>Precision mechanical digital readout for desired boring depth.<br></li> <li>See through PVC guard to cover boring units for added safety.</li> <li>Spring-loaded part hold down.</li> <li>Precision slide bushing linear bearings for boring head stroke.</li> <li>Back fence & cross fence with scale position indicator.</li> <li>Two (2) flip stops on back fence.</li> </ul> <p>&nbsp;</p> <table style="width: 384px; height: 291px;" border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td><strong>Specifications:</strong></td> <td style="text-align: center;">&nbsp;</td> </tr> <tr> <td>Number of Drilling Spindles</td> <td style="text-align: center;">21 (10 LH & 11 RH)</td> </tr> <tr> <td>Motor</td> <td style="text-align: center;">2 HP</td> </tr> <tr> <td>Distance between Spindles</td> <td style="text-align: center;">32 mm</td> </tr> <tr> <td>Spinlde Chuck</td> <td style="text-align: center;">10 mm</td> </tr> <tr> <td>Table Size</td> <td style="text-align: center;">43 5/16” x 15 ¾”</td> </tr> <tr> <td>Table Height from Floor</td> <td style="text-align: center;">33 3/8”</td> </tr> <tr> <td>Max. Depth of Stroke</td> <td style="text-align: center;">3 3/8” (85 mm)</td> </tr> <tr> <td>Max. Boring Depth from Edge</td> <td style="text-align: center;">8”</td> </tr> <tr> <td>Back Fence</td> <td style="text-align: center;">74 ¾”</td> </tr> <tr> <td>Back Fence Stops</td> <td style="text-align: center;">2 pcs</td> </tr> <tr> <td>Cross Fence Stops</td> <td style="text-align: center;">2 pcs</td> </tr> <tr> <td>Air Requirement</td> <td style="text-align: center;">70 PSI</td> </tr> <tr> <td>Electrics</td> <td style="text-align: center;">230/1/60</td> </tr> <tr> <td>Machine Dimensions</td> <td style="text-align: center;">75” x 30 ¾” x 58 ¼”</td> </tr> <tr> <td>Net Weight</td> <td style="text-align: center;">375 lbs.</td> </tr> <tr> <td>Shipping Dimensions</td> <td style="text-align: center;">43.3” x 33” x 69.3”</td> </tr> <tr> <td>Shipping Weight</td> <td style="text-align: center;">506 lbs.</td> </tr> </tbody> </table> </div>
