<p>Castaly Machinery offers a varity of CNC Routers. Please check features and specifications of each to find the one that best meets your needs.</p>
<h3>Features:</h3>
<div>
<ul>

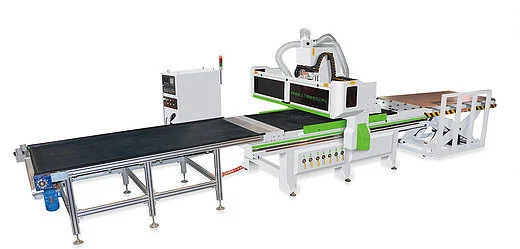

<li>Nesting work for Automatic Infeed Loading with scissor lift and Outfeed Unloading with conyeyor Process</li>
<li>Automatic 8 Rotary station auto tool changer for increased productivity.</li>
<li>All “servo motor” driving system: All axis are driven by brush-less type, high torque AC servo motors.</li>
<li>PC base Syntec CNC controller is setup to accept standard G-code programming formats along with onboard conversational applications.</li>
<li>Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can be imported, modified and edited from here to create a G-code.</li>
<li>Moving gantry construction for space saving.</li>
<li>The rigid steel frame construction has been stress relieved prior to finish machining to provide repeat-ability and accuracy.</li>
<li>The HSD spindle uses CP4 DB bearings with a dust-free design. The heavy-duty fan cooling system forces air through the spindle to assist in trouble-free operation.</li>
<li>Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.</li>
<li>Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.</li>
<li>The X & Y axis are equipped with a precision rack & pinion driving system.</li>
<li>The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.</li>
<li>Special design 6 zone vacuum table surface for powerful hold down.</li>
</ul>
<p> </p>
<table>
<tbody>
<tr>
<td>
<p><strong>Specifications:</strong></p>
</td>
<td> </td>
</tr>
<tr>
<td>
<p>Control system</p>
</td>
<td style="text-align: center;">
<p>SYNTEC Control system</p>
</td>
</tr>
<tr>
<td>
<p>Tool Change</p>
</td>
<td style="text-align: center;">
<p>Automatic 8 pcs ISO30 Tools, RotaryTool Quick Change</p>
</td>
</tr>
<tr>
<td>
<p>11 (5 + 5) “L” Drill Bank</p>
</td>
<td style="text-align: center;">
<p>Standard HSD Drill Bank</p>
</td>
</tr>
<tr>
<td>
<p>Auto Loading</p>
</td>
<td style="text-align: center;">
<p>Auto Infeed Loading Scissor Lift & Outfeed Conveyor Table</p>
</td>
</tr>
<tr>
<td>
<p> Spindle</p>
</td>
<td style="text-align: center;">
<p>HSD 12.8 HP (9.6 KW) air cooling, Quick Change, speed 6,000-24,000 rpm/min</p>
</td>
</tr>
<tr>
<td>
<p> Lathe frame</p>
</td>
<td style="text-align: center;">
<p> Heavy duty metal welding with quenching process</p>
</td>
</tr>
<tr>
<td>
<p> Table</p>
</td>
<td style="text-align: center;">
<p> 6 zone Vacuum table</p>
</td>
</tr>
<tr>
<td>
<p>Driving system</p>
</td>
<td style="text-align: center;">
<p>Japan Yaskawa AC servo drive & motor & Japan SHIMPO Gear Box</p>
</td>
</tr>
<tr>
<td>
<p> X, Y Axis structure</p>
</td>
<td style="text-align: center;">
<p> Taiwan TBI or HIWIN Helical rack and pinion drive</p>
</td>
</tr>
<tr>
<td>
<p> Z Axis Structure</p>
</td>
<td style="text-align: center;">
<p> Taiwan TBI or HIWIN ball screw</p>
</td>
</tr>
<tr>
<td>
<p> X Y Z Axis Square rails</p>
</td>
<td style="text-align: center;">
<p> Taiwan HIWIN brand 25 square rails</p>
</td>
</tr>
<tr>
<td>
<p> Inverter</p>
</td>
<td style="text-align: center;">
<p> 11 KW Inverter</p>
</td>
</tr>
<tr>
<td>
<p> Electric parts</p>
</td>
<td style="text-align: center;">
<p> France Schneider</p>
</td>
</tr>
<tr>
<td>
<p> Limited switch</p>
</td>
<td style="text-align: center;">
<p> Japan Omron</p>
</td>
</tr>
<tr>
<td>
<p> Machine Cable</p>
</td>
<td style="text-align: center;">
<p> German Siemens OEM factory cable</p>
</td>
</tr>
<tr>
<td>
<p> Oil lubrication</p>
</td>
<td style="text-align: center;">
<p> Automatic control with filter</p>
</td>
</tr>
<tr>
<td>
<p> Machine working size</p>
</td>
<td style="text-align: center;">
<p> PRO-408; X*51’’, Y*98’’, Z*7-3/4’’ / PRO-510; X*63’’, Y*126’’, Z*7-3/4’’</p>
</td>
</tr>
<tr>
<td>
<p> Machine Size (L x W x H)</p>
</td>
<td style="text-align: center;">
<p> PRO-408; 433” x 98” x 71” / PRO-510; 531” x 110” x 71”</p>
</td>
</tr>
<tr>
<td>
<p> Machine Max. travel speed</p>
</td>
<td style="text-align: center;">
<p> 2,350 IPM</p>
</td>
</tr>
<tr>
<td>
<p> Machine Max. working speed</p>
</td>
<td style="text-align: center;">
<p> 1,100 IPM</p>
</td>
</tr>
<tr>
<td>
<p> Machine power</p>
</td>
<td style="text-align: center;">
<p> 3 PH ,220 V ,53 AMP</p>
</td>
</tr>
<tr>
<td>
<p> Machine weight</p>
</td>
<td style="text-align: center;">
<p>PRO-408; 8,810 lbs</p>
<p>PRO-510 9,970 lbs</p>
</td>
</tr>
<tr>
<td>
<p> Support Dictate Format</p>
</td>
<td style="text-align: center;">
<p> *.plt,*.dst,*.dxf,*.bmp,*.dwg,*uoo</p>
</td>
</tr>
<tr>
<td>
<p> Control switch</p>
</td>
<td style="text-align: center;">
<p> German Moeller</p>
</td>
</tr>
<tr>
<td>
<p> MPG</p>
</td>
<td style="text-align: center;">
<p> Standard</p>
</td>
</tr>
<tr>
<td>
<p> Tool Length Device</p>
</td>
<td style="text-align: center;">
<p> Automatic</p>
</td>
</tr>
