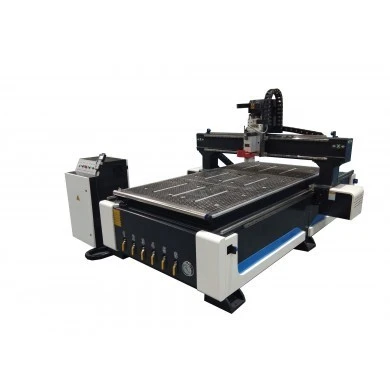

<p>Castaly Machinery offers a varity of CNC Routers. Please check features and specifications of each to find the one that best meets your needs.</p>
<h3>Features:</h3>
<div>
<ul>
<li>All “servo motor” driving system: All axis are driven by brush-less type, high torque AC servo motors.</li>
<li>DSP CNC controller is setup to accept standard G-code programming formats along with onboard conversational applications.</li>
<li>Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can be imported, modified and edited from here to create a G-code.</li>
<li>Moving gantry construction for space saving.</li>
<li>The rigid steel frame construction has been stress relieved prior to finish machining to provide repeat-ability and accuracy.</li>
<li>The HSD spindle uses CP4 DB bearings with a dust-free design. The heavy-duty fan cooling system forces air through the spindle to assist in trouble-free operation.</li>
<li>Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.</li>
<li>Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.</li>
<li>The X & Y axis are equipped with a precision rack & pinion driving system.</li>
<li>The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.</li>
<li>Special design 6 zone vacuum table surface for powerful hold down.</li>
</ul>
<p> </p>
<table>
<tbody>
<tr>
<td>
<p><strong>Specifications:</strong></p>
</td>
<td style="text-align: center;"> </td>
</tr>
<tr>
<td>
<p>Control System</p>
</td>
<td style="text-align: center;">
<p>Weihong NK105</p>
</td>
</tr>
<tr>
<td>
<p>Spindle</p>
</td>
<td style="text-align: center;">
<p>8.6 HP (6.0 kw) Air-cooled Spindle (6,000 - 18,000 RPM)</p>
</td>
</tr>
<tr>
<td>
<p>Bed frame</p>
</td>
<td style="text-align: center;">
<p> Heavy-duty Metal Welding</p>
</td>
</tr>
<tr>
<td>
<p>Table</p>
</td>
<td style="text-align: center;">
<p>Vacuum Table - 6 zones</p>
</td>
</tr>
<tr>
<td>
<p>Driving system</p>
</td>
<td style="text-align: center;">
<p> Yaskawa Servo Driver and Stepper Motor (Japan)</p>
</td>
</tr>
<tr>
<td>
<p>Y Axis Driving System</p>
</td>
<td style="text-align: center;">
<p> Helical Rack and Pinion Drive</p>
</td>
</tr>
<tr>
<td>
<p>X & Z Axis Driving System</p>
</td>
<td style="text-align: center;">
<p> HIWIN Ballscrew (Taiwan)</p>
</td>
</tr>
<tr>
<td>
<p>Axis Square Rails</p>
</td>
<td style="text-align: center;">
<p> HIWIN Linear Square Rails (Taiwan)</p>
</td>
</tr>
<tr>
<td>
<p>Inverter</p>
</td>
<td style="text-align: center;">
<p> 7.5 kW</p>
</td>
</tr>
<tr>
<td>
<p>Electric Parts</p>
</td>
<td style="text-align: center;">
<p> Schneider (France)</p>
</td>
</tr>
<tr>
<td>
<p>Limit Switch</p>
</td>
<td style="text-align: center;">
<p>Omron (Japan)</p>
</td>
</tr>
<tr>
<td>
<p>Electrical Wiring</p>
</td>
<td style="text-align: center;">
<p> Siemens (Germany)</p>
</td>
</tr>
<tr>
<td>
<p>Control Switch</p>
</td>
<td style="text-align: center;">
<p>Moeller (Germany)</p>
</td>
</tr>
<tr>
<td>
<p>Oil lubrication</p>
</td>
<td style="text-align: center;">
<p> Hand Control with Aluminum Oil Pipe</p>
</td>
</tr>
<tr>
<td>
<p>Machine Working Size</p>
</td>
<td style="text-align: center;">
<p> 63’’ X x 126’’ Y x 7-3/4’’ Z</p>
</td>
</tr>
<tr>
<td>
<p>Machine Size (L x W x H)</p>
</td>
<td style="text-align: center;">
<p>99” x 149” x 71”</p>
</td>
</tr>
<tr>
<td>
<p>Machine Max. Travel Speed</p>
</td>
<td style="text-align: center;">
<p> 1,400 IPM</p>
</td>
</tr>
<tr>
<td>
<p>Machine Max. Working Speed</p>
</td>
<td style="text-align: center;">
<p> 1,000 IPM</p>
</td>
</tr>
<tr>
<td>
<p>Machine Power</p>
</td>
<td style="text-align: center;">
<p> 3 PH, 220 V, 38 AMP</p>
</td>
</tr>
<tr>
<td>
<p>Machine net weight</p>
</td>
<td style="text-align: center;">
<p>3,960 lbs</p>
</td>
</tr>
<tr>
<td>
<p>Tool Length Device</p>
</td>
<td style="text-align: center;">
<p> Automatic</p>
</td>
</tr>
<tr>
<td>
<p>Vacuum Pump</p>
</td>
<td style="text-align: center;">
<p> Option</p>
</td>
</tr>
<tr>
<td>
<p>CAD / CAM Drawing Software</p>
</td>
<td style="text-align: center;">
<p> Option</p>
</td>
</tr>
</tbody>
</table>
