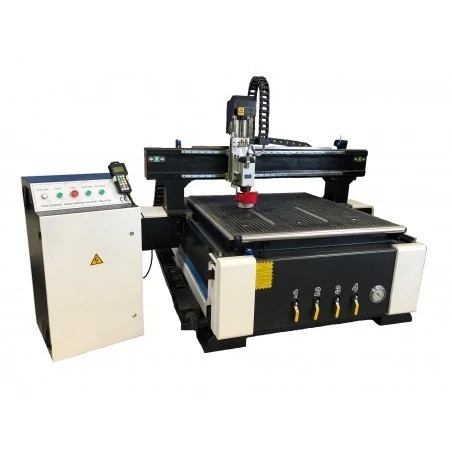

<p>Castaly Machinery offers a varity of CNC Routers. Please check features and specifications of each to find the one that best meets your needs.</p>
<h3>Features:</h3>
<div>
<ul>
<li>DSP CNC controller is setup to accept standard G-code programming formats along with onboard conversational applications.</li>
<li>Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can be imported, modified and edited from here to create a G-code.</li>
<li>DNC is no longer required as the PC directly stores all part programs in a text editable file.</li>
<li>Machine designed ready for 3-D cutting usage and superior performance.</li>
<li>Moving gantry construction for space saving.</li>
<li>The rigid steel frame construction has been stress relieved prior to finish machining to provide repeatability and accuracy.</li>
<li>Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.</li>
<li>Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.</li>
<li>The X & Y axis are equipped with a precision rack & pinion driving system. The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.</li>
</ul>
<p> </p>
<table>
<tbody>
<tr>
<td>
<p><strong>Specifications:</strong></p>
</td>
<td style="text-align: center;"> </td>
</tr>
<tr>
<td>
<p>Control System</p>
</td>
<td style="text-align: center;">
<p>Weihong NK105</p>
</td>
</tr>
<tr>
<td>
<p>Spindle</p>
</td>
<td style="text-align: center;">
<p>6 HP (4.5 kw) Air-cooled Spindle</p>
</td>
</tr>
<tr>
<td>
<p>Bed frame</p>
</td>
<td style="text-align: center;">
<p> Heavy-duty Metal Welding</p>
</td>
</tr>
<tr>
<td>
<p>Table</p>
</td>
<td style="text-align: center;">
<p>Vacuum Table - 4 zones</p>
</td>
</tr>
<tr>
<td>
<p>Driving system</p>
</td>
<td style="text-align: center;">
<p> Yako Driver and Stepper Motor 450W</p>
</td>
</tr>
<tr>
<td>
<p>Y Axis Driving System</p>
</td>
<td style="text-align: center;">
<p> Helical Rack and Pinion Drive</p>
</td>
</tr>
<tr>
<td>
<p>X & Z Axis Driving System</p>
</td>
<td style="text-align: center;">
<p> HIWIN Ballscrew (Taiwan)</p>
</td>
</tr>
<tr>
<td>
<p>Axis Square Rails</p>
</td>
<td style="text-align: center;">
<p> HIWIN Linear Square Rails (Taiwan)</p>
</td>
</tr>
<tr>
<td>
<p>Inverter</p>
</td>
<td style="text-align: center;">
<p> 5 kW</p>
</td>
</tr>
<tr>
<td>
<p>Electric Parts</p>
</td>
<td style="text-align: center;">
<p> Schneider (France)</p>
</td>
</tr>
<tr>
<td>
<p>Limit Switch</p>
</td>
<td style="text-align: center;">
<p>Omron (Japan)</p>
</td>
</tr>
<tr>
<td>
<p>Electrical Wiring</p>
</td>
<td style="text-align: center;">
<p> Siemens (Germany)</p>
</td>
</tr>
<tr>
<td>
<p>Control Switch</p>
</td>
<td style="text-align: center;">
<p>Moeller (Germany)</p>
</td>
</tr>
<tr>
<td>
<p>Oil lubrication</p>
</td>
<td style="text-align: center;">
<p> Hand Control with Aluminum Oil Pipe</p>
</td>
</tr>
<tr>
<td>
<p>Machine Working Size</p>
</td>
<td style="text-align: center;">
<p> 51’’ X x 98’’ Y x 7-3/4’’ Z</p>
</td>
</tr>
<tr>
<td>
<p>Machine Size (L x W x H)</p>
</td>
<td style="text-align: center;">
<p>122” x 87” x 71”</p>
</td>
</tr>
<tr>
<td>
<p>Machine Max. Travel Speed</p>
</td>
<td style="text-align: center;">
<p> 1,200 IPM</p>
</td>
</tr>
<tr>
<td>
<p>Machine Max. Working Speed</p>
</td>
<td style="text-align: center;">
<p> 950 IPM</p>
</td>
</tr>
<tr>
<td>
<p>Machine Power</p>
</td>
<td style="text-align: center;">
<p> 3 PH, 220 V, 25 AMP</p>
</td>
</tr>
<tr>
<td>
<p>Machine net weight</p>
</td>
<td style="text-align: center;">
<p>2,970 lbs</p>
</td>
</tr>
<tr>
<td>
<p>Tool Length Device</p>
</td>
<td style="text-align: center;">
<p> Manual</p>
</td>
</tr>
<tr>
<td>
<p>Vacuum Pump</p>
</td>
<td style="text-align: center;">
<p> Option</p>
</td>
</tr>
<tr>
<td>
<p>CAD / CAM Drawing Software</p>
</td>
<td style="text-align: center;">
<p> Option</p>
</td>
</tr>
</tbody>
</table>
