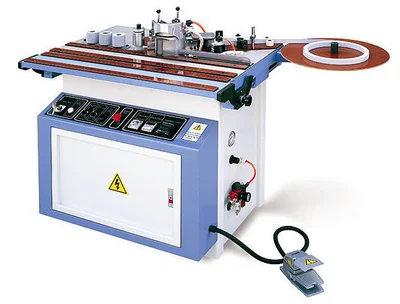

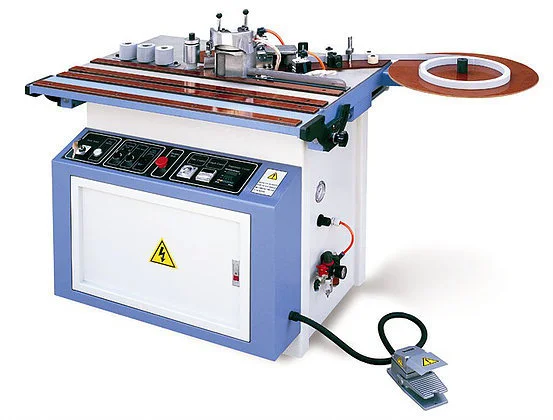

<p>Castaly Manual Edgebander Machine EB-1SC can be used for straight or curve edge banding.</p>
<h3>Features:</h3>
<div>
<ul>
<li>Automatic gluing system, glue pot under the gluing applicator and applies the glue to work material & edge band.<br></li>
<li>Variable feed speed, up to 33 FPM controlled by DC motor.</li>
<li>Two thermos control systems to protect motor and gluing applicator.</li>
<li>Electric counter or position limit switch for automatic pneumatic end guillotine.</li>
<li>Top & bottom trimming unnecessary when the edge material as wide as thickness of panels.</li>
</ul>
<p> </p>
<table>
<tbody>
<tr>
<td>
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td style="text-align: center;">
<p> </p>
</td>
</tr>
<tr>
<td>
<p>Edge Band Thickness</p>
</td>
<td style="text-align: center;">
<p>0.3 ~ 3 MM</p>
</td>
</tr>
<tr>
<td>
<p>Workpiece Thickness</p>
</td>
<td style="text-align: center;">
<p>10 - 40 MM</p>
</td>
</tr>
<tr>
<td>
<p>Min. Work Radius of Curve</p>
</td>
<td style="text-align: center;">
<p>3/4"</p>
</td>
</tr>
<tr>
<td>
<p> Workpiece Length</p>
</td>
<td style="text-align: center;">
<p>160-Unlimited</p>
</td>
</tr>
<tr>
<td>
<p> Workpiece Width</p>
</td>
<td style="text-align: center;">
<p>65-Unlimited</p>
</td>
</tr>
<tr>
<td>
<p> Feed Speed</p>
</td>
<td style="text-align: center;">
<p>0 ~ 33 FPM</p>
</td>
</tr>
<tr>
<td>
<p> Feed Motor</p>
</td>
<td style="text-align: center;">
<p>0.37 KW</p>
</td>
</tr>
<tr>
<td>
<p> Heating Element Power</p>
</td>
<td style="text-align: center;">
<p>2.4 KW</p>
</td>
</tr>
<tr>
<td>
<p> Working Air Pressure</p>
</td>
<td style="text-align: center;">
<p>90 PSI</p>
</td>
</tr>
<tr>
<td>
<p> Work Table</p>
</td>
<td style="text-align: center;">
<p>39" x 28.5"</p>
</td>
</tr>
<tr>
<td>
<p> Table Tilting Angle</p>
</td>
<td style="text-align: center;">
<p>0 ~ 45 Degree</p>
</td>
</tr>
<tr>
<td>
<p> Machine Size</p>
</td>
<td style="text-align: center;">
<p>63" x 38" x 45"</p>
</td>
</tr>
<tr>
<td>
<p> N.W.</p>
</td>
<td style="text-align: center;">
<p>680 LBS</p>
</td>
</tr>
</tbody>
</table>
