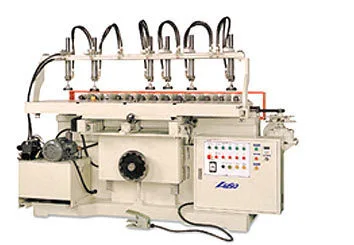

<p>Castaly 96" Oscillating Tenon, Boring M/C BR-8096B is well-suited for boring or mortising operations.</p>
<h3>Features:</h3>
<ul>
<li>The boring unit can add more spindles easily.</li>
<li>Each spindle can be adjusted horizontal position quickly.</li>
<li>Suitable and affordable for industrial and small workshop use.</li>
<li>Capable of using "multiple drill head" for the drill distance less then 2".</li>
<li>Pneumatic clamp and drill head travel, operated by foot pedal, hands free.</li>
<li>Pneumatic and hydraulically in and out stroke control for max. drilling power.</li>
<li>Oscillating operation can be drilled by separate motor, fast and easy adjust.</li>
<li>The foot switch permits operator to free his hands for handling workpiece. Mortising operation is conveniently made by simply treading on the foot switch that upgrades working efficiency and safety.</li>
<li>Cast iron base and table for durable usage.</li>
</ul>
<p> </p>
<table style="width: 392px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="234">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="158"> </td>
</tr>
<tr>
<td width="234">
<p>Mortise Width</p>
</td>
<td width="158">
<p align="center">0 ~ 2 1/2"</p>
</td>
</tr>
<tr>
<td width="234">
<p>Max. Mortise / Drill Depth</p>
</td>
<td width="158">
<p align="center">2 3/8"</p>
</td>
</tr>
<tr>
<td width="234">
<p>Mini. Distance between Holes</p>
</td>
<td width="158">
<p align="center">2 3/4"</p>
</td>
</tr>
<tr>
<td width="234">
<p>Oscillating Rate</p>
</td>
<td width="158">
<p align="center">7 1/2 HP x 2</p>
</td>
</tr>
<tr>
<td width="234">
<p>Drill Speed (RPM)</p>
</td>
<td width="158">
<p align="center">50 ~ 90 Stroke/min</p>
</td>
</tr>
<tr>
<td width="234">
<p>Drill Chuck</p>
</td>
<td width="158">
<p align="center">1/2"</p>
</td>
</tr>
<tr>
<td width="234">
<p>Table Size</p>
</td>
<td width="158">
<p align="center">13" x 96"</p>
</td>
</tr>
<tr>
<td width="234">
<p>Max. Working Length</p>
</td>
<td width="158">
<p align="center">2" ~ 96"</p>
</td>
</tr>
<tr>
<td width="234">
<p>Standard Hold Down Clamps</p>
</td>
<td width="158">
<p align="center">5 pcs </p>
</td>
</tr>
<tr>
<td width="234">
<p>Standard Drill Spindle</p>
</td>
<td width="158">
<p align="center">16 pcs </p>
</td>
</tr>
<tr>
<td width="234">
<p>Max. Drill Spindles</p>
</td>
<td width="158">
<p align="center">24 pcs</p>
</td>
</tr>
<tr>
<td width="234">
<p>Oscillating Motor</p>
</td>
<td width="158">
<p align="center">1 HP</p>
</td>
</tr>
<tr>
<td width="234">
<p>Hydraulic Pump</p>
</td>
<td width="158">
<p align="center">2 HP</p>
</td>
</tr>
<tr>
<td width="234">
<p>Net Weight</p>
</td>
<td width="158">
<p align="center">5160 LBS</p>
</td>
</tr>
<tr>
<td width="234">
<p>Machine Size</p>
</td>
<td width="158">
<p align="center">122" x 36" x 70"</p>
</td>
</tr>
</tbody>
</table>
