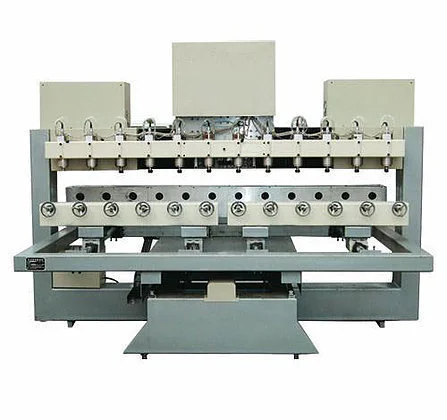

<p>The Castaly 32" x 10" 8 Spindle CNC Carving Machine RT-3210CAV-8 is designed for 3D cutting usage and superior performance.</p>
<h3>Features:</h3>
<ul>
<li>Training and installation, tooling & rigging are optional.</li>
<li>Automatic eight of the 360 degree rotary carving stations to increase productivity 3D engraving and carving processing.</li>
<li>All “Servo Motor” driving system.</li>
<li>PC base CNC controller is setup to accept standard G-code programming formats along with onboard conversational applications.</li>
<li>All axis are driven by brushless-type high torque AC Servo motors.</li>
<li>Optional CAD/CAM system can create and edit part programs then send to machine for cutting easily. DXF files can be imported, modified and edited from here to create a G-code.</li>
<li>DNC is no longer required as the PC directly stores all part programs in a text editable file.</li>
<li>Machine designed ready for 3D cutting usage and superior performance.</li>
<li>Moving gantry construction for space saving.</li>
<li>The rigid steel frame construction has been stress relieved prior to finish machining to provide repeatability and accuracy.</li>
<li>Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.</li>
<li>Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.</li>
<li>The X & Y axis are equipped with a precision rack & pinion driving system.</li>
<li>The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.</li>
</ul>
<p> </p>
<table style="width: 713px;" border="0" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="281">
<p><strong>Specifications:</strong></p>
</td>
<td width="228"> </td>
</tr>
<tr>
<td width="281">
<p>TABLE SIZE</p>
</td>
<td width="228">
<p align="center">48” X 76”</p>
</td>
</tr>
<tr>
<td width="281">
<p>MAX. WORKING LENGTH</p>
</td>
<td width="228">
<p align="center">32”</p>
</td>
</tr>
<tr>
<td width="281">
<p>MAX. WORKING DIAMETER</p>
</td>
<td width="228">
<p align="center">10”</p>
</td>
</tr>
<tr>
<td width="281">
<p>MAX. WORKING WEIGHT</p>
</td>
<td width="228">
<p align="center">1700 LBS</p>
</td>
</tr>
<tr>
<td width="281">
<p>MAX. WORKING SPEED</p>
</td>
<td width="228">
<p align="center">590 IPM</p>
</td>
</tr>
<tr>
<td width="281">
<p>RAPID SPEED</p>
</td>
<td width="228"> </td>
</tr>
<tr>
<td width="281">
<p> X AXIS</p>
</td>
<td width="228">
<p align="center">800 IPM</p>
</td>
</tr>
<tr>
<td width="281">
<p> Y AXIS</p>
</td>
<td width="228">
<p align="center">800 IPM</p>
</td>
</tr>
<tr>
<td width="281">
<p> Z AXIS</p>
</td>
<td width="228">
<p align="center">600 IPM</p>
</td>
</tr>
<tr>
<td width="281">
<p>SPINDLE</p>
</td>
<td width="228">
<p align="center">ER-32 Collect</p>
</td>
</tr>
<tr>
<td width="281">
<p>SPINDLE POWER</p>
</td>
<td width="228">
<p align="center">2.2 KW x 4</p>
</td>
</tr>
<tr>
<td width="281">
<p>SPINDLE SPEED (RPM)</p>
</td>
<td width="228">
<p align="center">8000 ~ 24000</p>
</td>
</tr>
<tr>
<td width="281">
<p>SPINDLE SPEED CONTROLLER</p>
</td>
<td width="228">
<p align="center">INVERTER</p>
</td>
</tr>
<tr>
<td width="281">
<p>POWER (NO PUMP) 3PH</p>
</td>
<td width="228">
<p align="center">220V 80 AMP</p>
</td>
</tr>
<tr>
<td width="281">
<p>AIR CONSUMPTION 90 PSI</p>
</td>
<td width="228">
<p align="center">15 CFM</p>
</td>
</tr>
<tr>
<td width="281">
<p>CAD/CAM SOFTWARE</p>
</td>
<td width="228">
<p align="center">Optional</p>
</td>
</tr>
</tbody>
</table>
