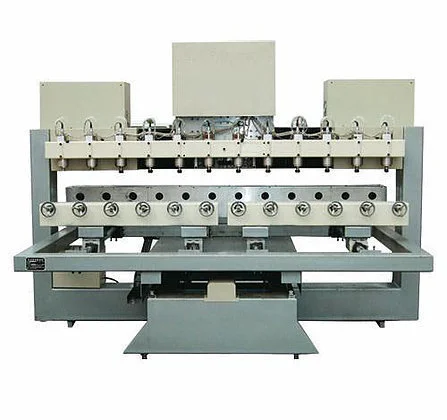

Castaly 48" x 10" 8 Spindle CNC Carving Machine RT-4810CAV-8
Have one to sell?
ConditionNew
New
The Castaly 48" x 10" 8 Spindle CNC Carving Machine RT-4810CAV-8 is is designed for 3D cutting usage and superior performance.
Features:
Training and installation, tooling & rigging are optional.
Automatic eight of the 360-degree rotary carving stations to increase productivity 3D engraving and carving processing.
All “Servo Motor” driving system.
PC base CNC controller is setup to accept standard G-code programming formats along with onboard conversational applications.
All axis are driven by brushless-type high torque AC Servo motors.
Optional CAD/CAM system can create and edit part programs then send to machine for cutting easily. DXF files can be imported, modified and edited from here to create a G-code.
DNC is no longer required as the PC directly stores all part programs in a text editable file.
Machine designed ready for 3D cutting usage and superior performance.
Moving gantry construction for space saving.
The rigid steel frame construction has been stress relieved prior to finish machining to provide repeatability and accuracy.
Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.
Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.
The X & Y axis are equipped with a precision rack & pinion driving system.
The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.
Specifications:
TABLE SIZE
59” X 98”
MAX. WORKING LENGTH
47”
MAX. WORKING DIAMETER
10”
MAX. WORKING WEIGHT
1800 LBS
MAX. WORKING SPEED
590 IPM
RAPID SPEED
X AXIS
800 IPM
Y AXIS
800 IPM
Z AXIS
600 IPM
SPINDLE
ER-32 Collect
SPINDLE POWER
2.2 KW x 8
SPINDLE SPEED (RPM)
8000 ~ 24000
SPINDLE SPEED CONTROLLER
INVERTER
POWER (NO PUMP) 3PH
220V 80 AMP
AIR CONSUMPTION 90 PSI
15 CFM
CAD/CAM SOFTWARE
Optional
