OMGA Optimizing & Cut Off Saw T 521 ST
Have one to sell?
ConditionNew
New

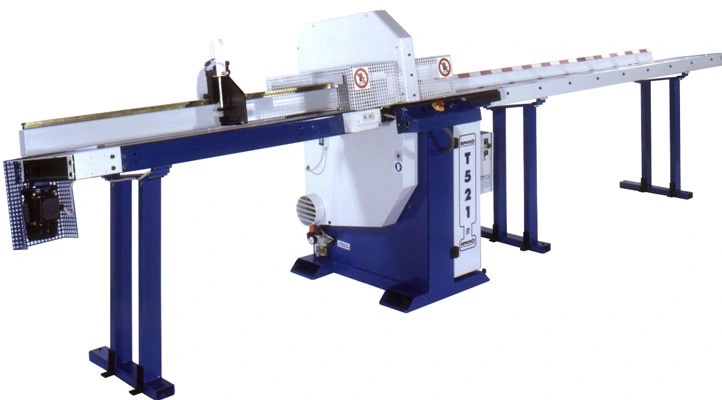

Pneumatic adjustable speed up-stroke pneumatically activated through a foot pedal control. Automatic workpiece clamping in cycle with blade stroke. The clamp also acts as the blade guard and ensures total safety for the operator. The unit is best suited for length cutting and defect removal. On request T 521 ST can be equipped with infeed and outfeed roller table with scale for positioning of manual or pneumatic flip over stops.
Optional Equipment:
9' Outfeed Table with Fence
12' Outfeed Table with Fence
9' Table with Rollers and Fence
12' Table with Rollers and Fence
5' Motorized Outfeed Conveyor Belt
10' Motorized Outfeed Conveyor Belt
Balancing Moveable Stop
Pneumatic Moveable Stop
Pneumatic Bridge Stop w/manual Controls
Pneumatic Bridge Stop w/automatic Controls
Specifications:
Max. Cutting Width
12 5/8”
Max. Cutting Depth
5 ½”
Motor Power
7 HP
Saw Blade Bore
35 mm
Saw Blade Diameter
18” (20” optional)
Arbor Speed RPM
3200
Dust Chute
6”
Overall Dimensions
28” x 37” x 39”
