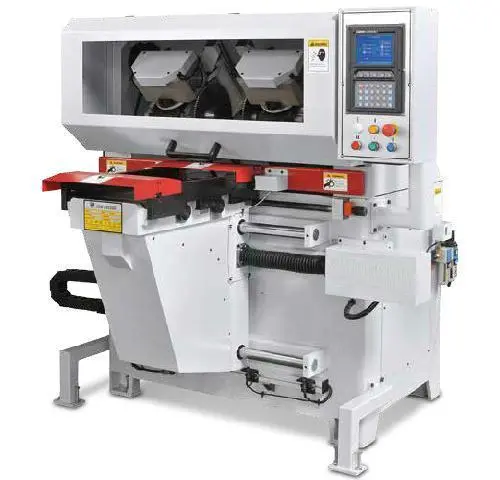

CNC Auto End Match / Tenoner Machine SET-2500-EM-CNC

Have one to sell?

530-893-2444

info@globalsalesgroupinc.com

ConditionNew

Quantity

CASTALY MACHINERY SET-2500-EM-CNC Tenoners | Global Sales Group Inc (1)

CASTALY MACHINERY SET-2500-EM-CNC Tenoners | Global Sales Group Inc

New

Have one to sell?

Document (1)

gsg_castaly_tenoner_set-2500-em-cnc.pdf

Overview

Type:

Tenoners

Manufacturer:

CASTALY MACHINERY

Model:

SET-2500-EM-CNC

Condition:

Build To Order

Stock #:

1685

Status:

For Sale

Description

CNC Auto End Match / Tenoner Machine  SET-2500-EM-CNC is an entire machine controlled by a CNC controller providing easy operation. <h3>Features:</h3> <ul> <li>The machine consists of one set of tenoning head and two sets of saw heads.</li> <li>The entire machine motions are controlled by a CNC controller providing easy operation.</li> <li>Right and left movement of table is driven by a servo motor combined with ball screw transmission featuring fast travel and high accuracy positioning.</li> <li>Automatic 90˚ sawhead rotation. Rotation is actuated by swing cylinder.</li> <li>Workpiece is clamped by air cylinders.</li> <li>Sawblade elevation is driven by air cylinder.</li> <li>Fast motion cycle.</li> <li>High efficiency, high productivity.</li> </ul>   <div align="center"> <table border="1" cellpadding="0"> <tbody> <tr> <td width="268"> Specifications: </td> <td width="230"> </td> </tr> <tr> <td width="268"> Wood Length </td> <td width="230"> 20” x 100” </td> </tr> <tr> <td width="268"> Wood Width </td> <td width="230"> 3 1/8” x 11 ½” </td> </tr> <tr> <td width="268"> Wood Thickness </td> <td width="230"> 1 1/8” to 2” </td> </tr> <tr> <td width="268"> Saw Head </td> <td width="230">   </td> </tr> <tr> <td width="268"> Saw Blade Sizes </td> <td width="230"> 10” x 1/8” </td> </tr> <tr> <td width="268">      Saw Arbor Diameter </td> <td width="230"> 1” </td> </tr> <tr> <td width="268">      Saw Blade Speed </td> <td width="230"> 2800 RPM </td> </tr> <tr> <td width="268">      Saw Blade Motor </td> <td width="230"> 3 HP x 2 </td> </tr> <tr> <td width="268">      Saw Head Rotation </td> <td width="230"> 90˚ </td> </tr> <tr> <td width="268"> Cutterhead </td> <td width="230">   </td> </tr> <tr> <td width="268">      Cutter Diameter </td> <td width="230"> 8” </td> </tr> <tr> <td width="268">      Cutter Arbor Diameter </td> <td width="230"> 40 mm </td> </tr> <tr> <td width="268">      Cutter Speed </td> <td width="230"> 5600 RPM </td> </tr> <tr> <td width="268">      Cutter Motor </td> <td width="230"> 4 HP </td> </tr> <tr> <td width="268"> Table Feed Motor </td> <td width="230"> 1 HP (servo) </td> </tr> <tr> <td width="268"> Total HP </td> <td width="230"> 9 kW (12 HP) </td> </tr> <tr> <td width="268"> Working Air Pressure </td> <td width="230"> 90 PSI </td> </tr> <tr> <td width="268"> Dust Hood Outlet Diameter </td> <td width="230"> 6” x 1 </td> </tr> <tr> <td width="268"> Machine Size (L x W x H) </td> <td width="230"> 70” x 61” x 68” </td> </tr> <tr> <td width="268"> Net Weight </td> <td width="230"> 2300 lbs. </td> </tr> </tbody> </table> </div>
