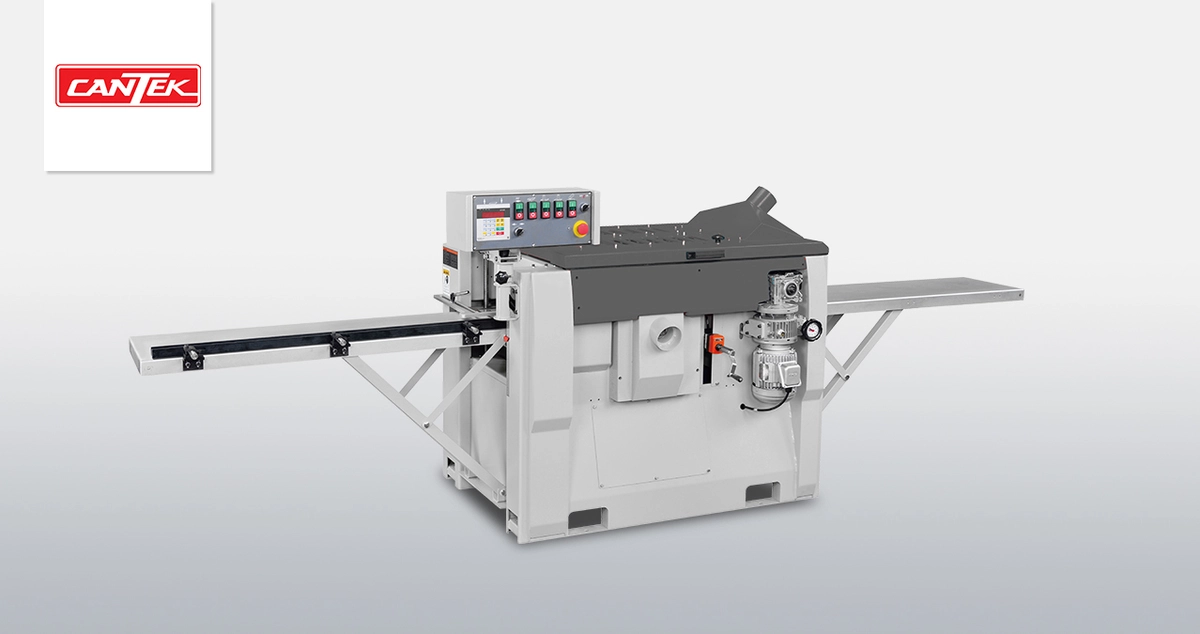

<p><!--StartFragment-->The Cantek M412 4-Sided Planer Moulder is an economical and compact
machine designed for professional woodworkers looking to produce a wide
range of mouldings or S4S. With individual motors to each spindle you
can comfortably produce a wide range of products including flooring,
crown moulding, paneling, door & furniture components, S4S, and
more. The electronic digital thickness control and mechanical readouts
allow for fast and accurate adjustment of the spindles to produce the
desired result. Equipped as standard with both infeed and outfeed
tables the material is well supported during cutting operations. Its
small footprint makes it the ideal solution for the small custom shop
who wants to produce their own mouldings.<!--EndFragment--></p>
<h3>FEATURES:</h3>
<!--StartFragment-->
<ul>
<li>Four cutting modes: Single / double / three / four-sided planing and moulding</li>
<li>Designated individual motors to each spindle</li>
<li>Variable feed speed from 11-52 FPM for optimum finish results</li>
<li>Digital motorized thickness controller (inch / metric) for operator convenience</li>
<li>Mechanical digital readouts for side head adjustment</li>
<li>3 depth of cut control plates for bottom cutterhead</li>
<li>Includes infeed outfeed table for supporting material during machining</li>
<li>Upgraded adjustable infeed fence for convenient depth adjustment</li>
<li>See through top guard so operator can view cutterheads</li>
</ul>
<!--EndFragment-->
<div class="std">
<p> </p>
<p> </p>
<table style="width: 498px; height: 464px;" border="0" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td valign="top"><strong>Specifications:</strong></td>
<td style="text-align: center;" valign="top"> </td>
</tr>
<tr>
<td valign="top">Planing</td>
<td style="text-align: center;" valign="top">Width: 13” (330mm) <br>Depth: 7/16” – 9” (12 – 230mm)</td>
</tr>
<tr>
<td valign="top">2-Side Planing/Moulding</td>
<td style="text-align: center;" valign="top">Width: 13-5/8"” (346mm) <br>Depth: 7/16” – 9” (12 – 230mm)</td>
</tr>
<tr>
<td valign="top">4-Side Planing/Moulding</td>
<td style="text-align: center;" valign="top">Width: 0 – 12” (0 – 305mm) <br>Depth: 7/16” – 4” (12 – 100mm)</td>
</tr>
<tr>
<td valign="top">Top Horizontal Spindle</td>
<td style="text-align: center;" valign="top">Width: 17-15/16” (455mm) <br>Max. Planing Depth: 5/16” (8mm) <br>Max. Moulding Depth: 3/4” (19mm) <br>Speed: 7000 RPM <br>Cutterhead Diameter: 2-7/8” (72mm) <br>Motor: 7-1/2HP (5.5Kw)</td>
</tr>
<tr>
<td valign="top">Bottom Horizontal Spindle:</td>
<td style="text-align: center;" valign="top">Width: 13-5/8” (346mm) <br>Max. Planing Depth: 1/4” (6mm) <br>Max. Moulding Depth: 3/16" (5mm) <br>Speed: 7000 RPM <br>Cutterhead Diameter: 2-7/8” (72mm) <br>Motor: 5HP (3.7Kw)</td>
</tr>
<tr>
<td valign="top">Right & Left Vertical Spindles</td>
<td style="text-align: center;" valign="top">Max. Cutting Height: 4” (100mm) <br>Max. Cutting Depth: 13/16” (21mm) <br>Spindle Diameter: 1-1/4" (31.75mm) <br>Speed: 7000 RPM <br>Max. Cutterhead Diameter: 3-1/2” (90mm) Motor: 4.1HP (3Kw)</td>
</tr>
<tr>
<td valign="top">Table</td>
<td style="text-align: center;" valign="top">Area: 1125 x 685 mm <br>Elevation: 230mm <br>Power Table (Raise): 120w</td>
</tr>
<tr>
<td valign="top"> </td>
<td style="text-align: center;" valign="top"> </td>
</tr>
<tr>
<td>Dust Hood Outlet</td>
<td style="text-align: center;">101.6 mm (4")</td>
</tr>
<tr>
<td valign="top">Feed System</td>
<td style="text-align: center;" valign="top">Speed (Variable): 11-52 ft/min. <br>Motor: 1/2HP (0.375Kw)</td>
</tr>
<tr>
<td valign="top">Machine Dimensions (LxWxH)</td>
<td style="text-align: center;" valign="top">1485 x 1265 x 1216 mm</td>
</tr>
<tr>
<td valign="top">Packing Dimensions (LxWxH)</td>
<td style="text-align: center;" valign="top">1350 x 1140 x 1130 mm</td>
</tr>
<tr>
<td valign="top">New Weight</td>
<td style="text-align: center;" valign="top">635kgs (1400 lbs)</td>
</tr>
<tr>
<td valign="top">Gross Weight</td>
<td style="text-align: center;" valign="top">730kgs (1610 lbs)</td>
</tr>
</tbody>
</table>
