Safety Speed Vertical Panel Saw C5
Have one to sell?
ConditionNew
New

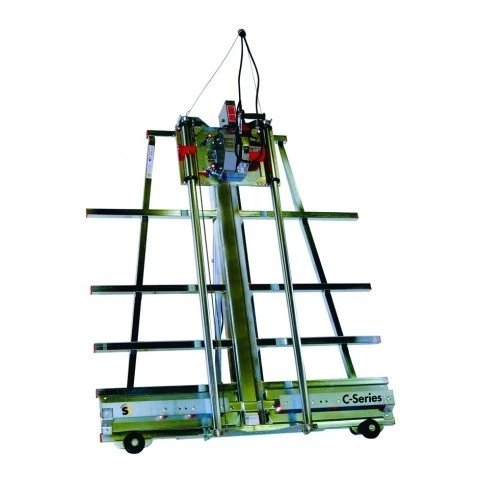

The C4 model packs all of the features of the full-size saws into a portable 5′ frame and features a 50″ maximum crosscut. The maximum cutting height on the C5 Panel Saw is 64″, both machines include a Milwaukee Tool motor and have no differences besides the maximum cutting height. The C4 is designed for customers who have limited floor space or require transporting the saw to the work site. Photos are shown with a stand and wheels, which are optional accessories.
Standard Equipment:
3 ¼ HP, 15 amp industrial duty saw motor.
Zinc-plated 1 ¾” steel guide tubes.
4 Nylatron roller bearing systems.
Adjustable vertical and horizontal rulers.
Quick change from vertical to horizontal cutting.
Thin material pressure guard.
Injection-molded plastic material rollers.
Spring-loaded counter balance system.
Integrated dust collection bonnet.
Extended warranty.
TUV certified to UL/CSA standards.
Specifications:
Weight 189 lbs
Dimensions 60 × 11 × 70 in
Max. Crosscut 50"/1270 mm
Max. Rip Cut 96"/2450 mm
Cut Depth 1 ¾"/45 mm
Cut Accuracy 1/32"/.8 mm
Frame Length 60"/ 525 mm
Saw Blade Diameter 8"/210 mm
Daily Usage 1-3 Hours
Rollers 8
Motor Volt and Amperage 15 amp, 120V, 7.5 amps, 220V
Motor Manufacturer Milwaukee Tool
