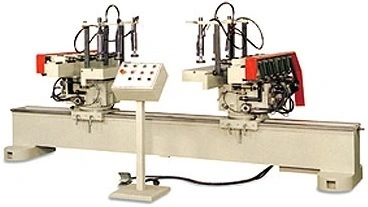

<p>Castaly 24" x 72" Two Side End Boring M/C BR-2072 is constructed of two horizontal boring units.</p>
<h3>Features:</h3>
<ul class="dotted-list">
<li class="simple-check-list">The boring units can be swiveled, making it suited for boring panels on the right, left and front side, or bevel boring at desired angles.</li>
<li class="simple-check-list">The boring unit can add more spindles or multiple drill head for less than 2" distance drilling.</li>
<li class="simple-check-list">Standard 5 spindles on each boring unit, pneumatic and hydraulic in and out stroke controlled.</li>
<li class="simple-check-list">Multiple gear heads are available.</li>
<li class="simple-check-list">Each spindle can be horizontal adjust position quickly.</li>
<li class="simple-check-list">Cast iron base and table for durable usage.</li>
<li class="simple-check-list">OPTIONAL Multiple Drill Head.</li>
</ul>
<p> </p>
<table style="width: 340px;">
<tbody>
<tr>
<td valign="bottom">
<p><strong>Specifications:</strong></p>
</td>
<td style="text-align: center;" valign="bottom"> </td>
</tr>
<tr>
<td valign="bottom">
<p>Motor (3 PH)</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>3 HP x 2</p>
</td>
</tr>
<tr>
<td valign="bottom">
<p>(Prewire)</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>110/ 230V</p>
</td>
</tr>
<tr>
<td valign="bottom">
<p>Drill Speed (RPM)</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>3400</p>
</td>
</tr>
<tr>
<td valign="bottom">
<p>Drill Chuck</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>1/2"</p>
</td>
</tr>
<tr>
<td valign="bottom">
<p>Spindle Stroke (Max.)</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>4"</p>
</td>
</tr>
<tr>
<td valign="bottom">
<p>Table Sizes (W x L)</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>10" x 72"</p>
</td>
</tr>
<tr>
<td valign="bottom">
<p>Max. Working Length</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>72"</p>
</td>
</tr>
<tr>
<td valign="bottom">
<p>Multiple Drill Head Available</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>Yes</p>
</td>
</tr>
<tr>
<td valign="bottom">
<p>Air Clamp</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>5.5</p>
</td>
</tr>
<tr>
<td valign="bottom">
<p>Max. Drill Distance (Chuck Type)</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>2"</p>
</td>
</tr>
<tr>
<td valign="bottom">
<p>N.W.</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>4200 LBS</p>
</td>
</tr>
<tr>
<td valign="bottom">
<p>G.W.</p>
</td>
<td style="text-align: center;" valign="bottom">
<p>4800 LBS</p>
</td>
</tr>
</tbody>
</table>
