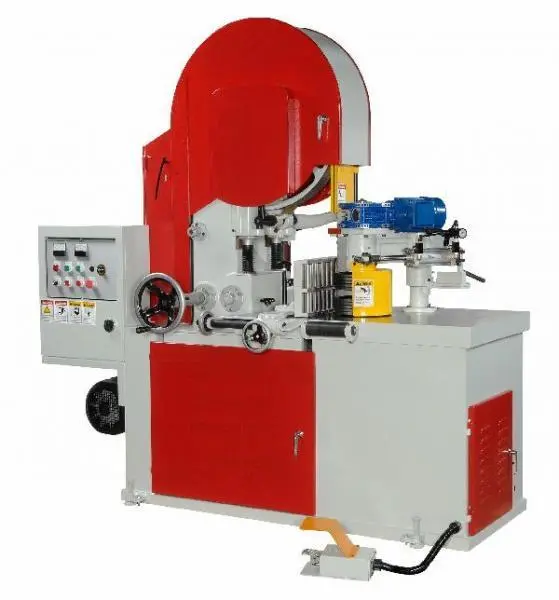

<p>The Castaly 36" Band Resaw with Power Feeder BS-900PF features infinitely variable feeder speeds for cutting various types of wood material, both soft and hard.</p>
<h3>Features:</h3>
<ul class="dotted-list">
<li class="simple-check-list">The side guide is micro metrically adjustable providing convenient adjustment for narrow blades.</li>
<li class="simple-check-list">The saw wheels are laminated with rubber for accurate blade tracking and slippage prevention.</li>
<li class="simple-check-list">The table is made of cast iron and the surface is precision ground.</li>
<li class="simple-check-list">The table can tilt to a maximum of 45 degrees front downward for bevel cuts.</li>
<li class="simple-check-list">Blade tension can be conveniently adjusted by means of a band wheel. A tension scale allows the operator to correctly adjust the tension for different blade widths.</li>
<li class="simple-check-list">The cast iron top and bottom saw wheels are precision machined and dynamically balanced for smooth running.</li>
<li class="simple-check-list">The see through guard provides operator safety and protection.</li>
<li class="simple-check-list">The foot brake permits the quick shut down of machine operations.</li>
<li class="simple-check-list">The heavy gauge steel frame ensures stable and vibration-free cutting.</li>
<li class="simple-check-list">4" diameter exhaust chute supplied as standard.</li>
<li class="simple-check-list">A foot pedal allows feeder fast swing away.</li>
<li class="simple-check-list">An infinitely variable feeder speed for cutting various types of wood material, both soft and hard.</li>
<li class="simple-check-list">A centralized control panel located at the normal operating position for convenient machine control.</li>
<li class="simple-check-list">An amp meter indicates the percentage of motor load.</li>
<li class="simple-check-list">The heavy gauge steel frame ensures maximum stability.</li>
<li class="simple-check-list">The big table 55” x 33-1/2", provides solid support for large sawing operations.</li>
</ul>
<p> </p>
<table style="width: 383px;" border="1" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td width="245">
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td width="138"> </td>
</tr>
<tr>
<td width="245">
<p>Saw Wheel Diameter</p>
</td>
<td width="138">
<p align="center">35 1/2"</p>
</td>
</tr>
<tr>
<td width="245">
<p>Max. Distance: Fence to Feed Wheel</p>
</td>
<td width="138">
<p align="center">8 5/8"</p>
</td>
</tr>
<tr>
<td width="245">
<p>Max. Distance: Blade to Feed Wheel</p>
</td>
<td width="138">
<p align="center">7 1/2"</p>
</td>
</tr>
<tr>
<td width="245">
<p>Max. Cutting Height</p>
</td>
<td width="138">
<p align="center">11 7/8”</p>
</td>
</tr>
<tr>
<td width="245">
<p>Length of Blade</p>
</td>
<td width="138">
<p align="center">227"</p>
</td>
</tr>
<tr>
<td width="245">
<p>Max Blade Width</p>
</td>
<td width="138">
<p align="center">4"</p>
</td>
</tr>
<tr>
<td width="245">
<p>Table Height from Floor</p>
</td>
<td width="138">
<p align="center">38 3/8”</p>
</td>
</tr>
<tr>
<td width="245">
<p>Blade Linear Speed</p>
</td>
<td width="138">
<p align="center">7500 FPM</p>
</td>
</tr>
<tr>
<td width="245">
<p>Feed Feeder Speed (Variable)</p>
</td>
<td width="138">
<p align="center">26 ~ 105 FPM</p>
</td>
</tr>
<tr>
<td width="245">
<p>Saw Wheel Drive Motor</p>
</td>
<td width="138">
<p align="center">20 HP</p>
</td>
</tr>
<tr>
<td width="245">
<p>Feed Drive Motor</p>
</td>
<td width="138">
<p align="center">½ HP</p>
</td>
</tr>
<tr>
<td width="245">
<p>Net Weight</p>
</td>
<td width="138">
<p align="center">3750 LBS</p>
</td>
</tr>
<tr>
<td width="245">
<p>Machine Size (L x W x H)</p>
</td>
<td width="138">
<p align="center">102” x 51” x 100”</p>
</td>
</tr>
</tbody>
</table>
