<p>AIRnet is a compressed air piping system that delivers quality air exactly where you need it, from compressor to the point of use.</p>
<p>Fast ~ Thanks to a smart design and low weight materials, AIRnet can be installed 70% faster than conventional systems.</p>
<p>Easy ~ AIRnet pipes and fittings are assembled in just a few steps by a single installer, without the need for heavy machinery.</p>
<p>Reliable ~ The durable, corrosion-free AIRnet pipes and fittings come with a 10-year warranty. Low friction and seamless connections minimize pressure drop.</p>
<p> </p>
<h3><strong>PERFORMANCE CRITERIA</strong></h3>
<ul>
<li>For compressed air, vacuum and nitrogen gas.</li>
<li>Vacuum Level: 0.013 bar abs.</li>
<li>Operating Pressure: - 20-50 mm & 100 mm (3/4-2”, 4”): max 16 barg (232 psig) - 63-80 mm (2 1/2-3”): max 13 barg (188 psig).</li>
<li>Operating Temperature Limits: - 20-50 mm & 100 mm (3/4”-2”, 4”): -20°C to 80°C (-4°F to 176°F) - 63-80 mm (2 1/2”-3”): -20°C to 70°C (-4°F to 158°F).</li>
<li>Lowest Allowable Pressure Dewpoint: -70°C (-94°F).</li>
<li>Resistant to the effect of compressor oils (mineral oil/PAO based/Ester based oils).</li>
<li>AIRnet pipes are resistant to direct UV radiation and fittings are resistant to indirect UV radiation, corrosion-free.</li>
<li>Leak-resistant.</li>
<li>Compatible with oil-free and oil-injected compressors.</li>
<li>For indoor installation (protected against direct sunlight, rain, snow or wind).</li>
</ul>
<p> </p>
<table>
<tbody>
<tr>
<td>
<p><strong>Product Range:</strong></p>
</td>
<td>
<p> </p>
</td>
</tr>
<tr>
<td>
<p>Diameter Pipes and Fittings</p>
</td>
<td>
<p>20, 25, 40, 50, 63, 80, 100, 158</p>
</td>
</tr>
<tr>
<td>
<p>Pipes</p>
</td>
<td>

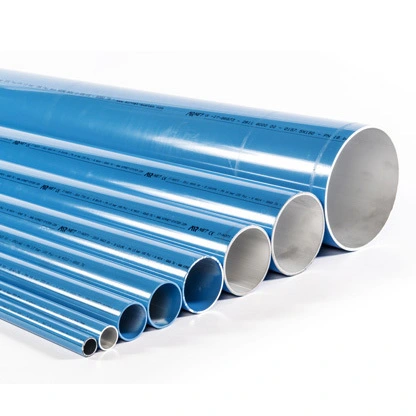

<p>Blue, green, straight 6 meter, straight 3 meter, S-bend, U-bend.</p>
</td>
</tr>
<tr>
<td>
<p>Fittings</p>
</td>
<td>
<p>Straight connections, reductions, tee, elbow 45°, elbow 90°, end cap, valves, quick drop, nipple, adaptor union, flange, threaded fittings.</p>
</td>
</tr>
<tr>
<td>
<p>Fixtures</p>
</td>
<td>
<p>Pipe clip, pipe clip spacer, valve support, flange support, pipe support/hanging solutions.</p>
</td>
</tr>
<tr>
<td>
<p>Tools</p>
</td>
<td>
<p>Spanner, drill bit, drill bit holder, pipe cutter, pipe cutter spare blade, deburr, torque wrench, slide fluid.</p>
</td>
</tr>
<tr>
<td>
<p>Accessories</p>
</td>
<td>
<p>Hose, conductivity strip, flange nuts and bolts, threaded couplings.</p>
</td>
</tr>
</tbody>
</table>
<p> </p>
<table>
<tbody>
<tr>
<td>
<p><strong>Part Number </strong></p>
</td>
<td style="text-align: center;">
<p><strong>AIRNET Ø<br /> [mm]</strong></p>
</td>
<td style="text-align: center;">
<p><strong>Lot Size</strong></p>
</td>
</tr>
<tr>
<td>
<p>2811 1063 10</p>
</td>
<td style="text-align: center;">
<p>20</p>
</td>
<td style="text-align: center;">
<p>10</p>
</td>
</tr>
<tr>
<td>
<p>2811 2063 10</p>
</td>
<td style="text-align: center;">
<p>25</p>
</td>
<td style="text-align: center;">
<p>10</p>
</td>
</tr>
<tr>
<td>
<p>2811 4063 05</p>
</td>
<td style="text-align: center;">
<p>40</p>
</td>
<td style="text-align: center;">
<p>05</p>
</td>
</tr>
<tr>
<td>
<p>2811 5063 04</p>
</td>
<td style="text-align: center;">
<p>50</p>
</td>
<td style="text-align: center;">
<p>04</p>
</td>
</tr>
<tr>
<td>
<p>2811 6063 03</p>
</td>
<td style="text-align: center;">
<p>63</p>
</td>
<td style="text-align: center;">
<p>03</p>
</td>
</tr>
<tr>
<td>
<p>2811 7063 02</p>
</td>
<td style="text-align: center;">
<p>80</p>
</td>
<td style="text-align: center;">
<p>02</p>
</td>
</tr>
</tbody>
</table>
