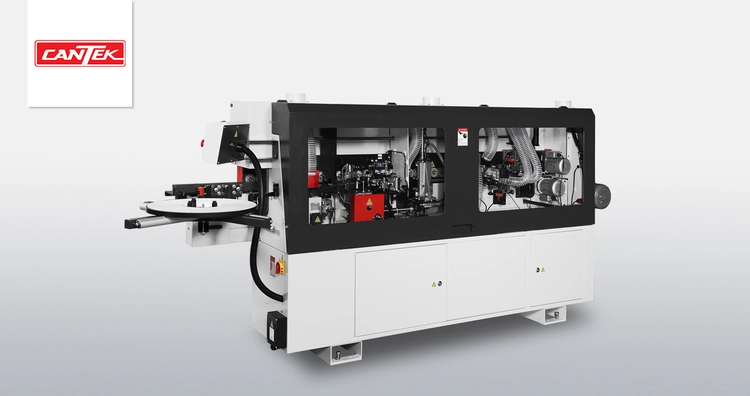

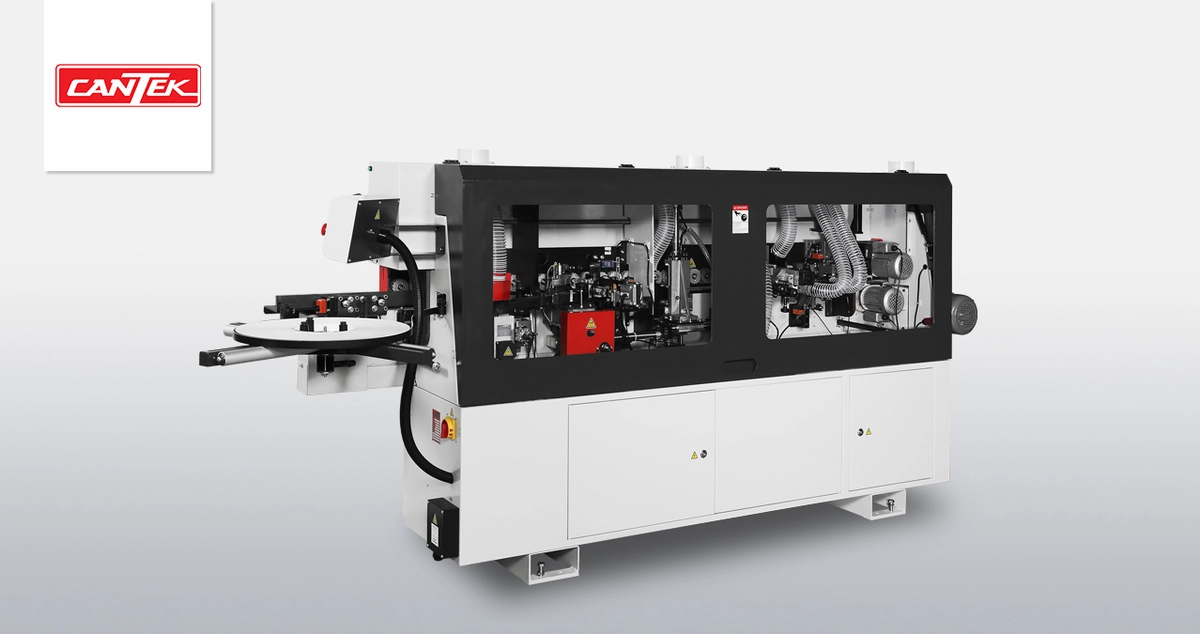

Cantek Automatic Edgebander with Premilling MX350

<p><!--StartFragment-->The Cantek MX350 Automatic Edgebander is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more. The counter rotating pre-milling cutters ensure optimum panel edge quality and squareness which result in a less visible glue joint. It comes equipped with high frequency motors on both the end trim and top & bottom trim. In addition it is equipped with PVC radius scraping and buffing units. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm. It’s compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop who requires pre-milling.<!--EndFragment--></p> <h3>Features:</h3> <!--StartFragment--> <ul> <li>Teflon coated Quick Change glue pot can be removed and exchanged in only minutes. Comes with (1) quick change pot and others can be acquired for running different color glues.</li> <li>Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed</li> <li>Conveyor chain feed system for reliable results</li> <li>Heated infeed fence for pre-heating the panel for optimum glue penetration</li> <li>PLC control system with LED display and keypad</li> <li>Workpiece is fed by chain</li> <li>Edge coil support plate: Ø 800mm (31 ½”), for PVC/ABS</li> <li>Spring-loaded pressure unit with (2) pressure rollers</li> <li>Heavy-duty pressure beam with extendable workpiece support</li> </ul> <!--EndFragment--> <div class="std"><div><ul> </ul> </div> <p>&nbsp;</p> <h3>Specifications:</h3> <table> <tbody> <tr> <td>Feeding Speed</td> <td style="text-align: center;">29.5 FPM&nbsp; (9 meters/min.)</td> </tr> <tr> <td>Panel Thickness</td> <td style="text-align: center;">0.315" - 1.77"&nbsp; (8 ~ 45 mm)</td> </tr> <tr> <td>Edge Thickness</td> <td style="text-align: center;">0.0158" - 0.118"&nbsp; (0.4 ~ 3 mm)</td> </tr> <tr> <td>Min. Panel Width</td> <td style="text-align: center;">4"&nbsp; (100 mm)</td> </tr> <tr> <td>Min. Panel Length</td> <td style="text-align: center;">6.7"&nbsp; (170 mm)</td> </tr> <tr> <td>Working Table Height</td> <td style="text-align: center;">33.47"&nbsp; (850 mm)</td> </tr> <tr> <td>Dust Collection Outlet</td> <td style="text-align: center;">Ø 127 mm (5”) x 2</td> </tr> <tr> <td>Electrical Consumption</td> <td style="text-align: center;">10 HP&nbsp; (7.5 kW)</td> </tr> <tr> <td>Electrical Reequirement</td> <td style="text-align: center;">40 AMPS @ 230/3/60</td> </tr> <tr> <td>Machine Weight</td> <td style="text-align: center;">1452 lbs.&nbsp; (660 kgs)</td> </tr> <tr> <td>Shipping Dimensions</td> <td style="text-align: center;">114" x 30" x 54"&nbsp; (3450 x 660 x 1850 mm)</td> </tr> <tr> <td>Shipping Weight</td> <td style="text-align: center;">1561 lbs.&nbsp; (708 kgs)</td> </tr> <tr> <td>Voltage</td> <td style="text-align: center;">230/3/60 or 230/1/60 <strong>(Voltage must be +/- 5%)</strong></td> </tr> </tbody> </table> <h3>&nbsp;</h3> <h3>Motor Specifications:</h3> <table style="width: 375px; height: 172px;"> <tbody> <tr> <td>Feeding Motor</td> <td style="text-align: center;">0.75 kW</td> </tr> <tr> <td>Pre-milling Motors (2 pcs)</td> <td style="text-align: center;">1.1 kW each (12000 RPM)</td> </tr> <tr> <td>Glue Spindle Motor</td> <td style="text-align: center;">0.18 kW&nbsp;</td> </tr> <tr> <td>Front/rear Trimming Motor</td> <td style="text-align: center;">0.22 kW (12000 RPM)</td> </tr> <tr> <td>Upper Trimming Motor</td> <td style="text-align: center;">0.37 kW (12000 RPM)</td> </tr> <tr> <td>Lower Trimming Motor</td> <td style="text-align: center;">0.37 kW (12000 RPM)</td> </tr> <tr> <td>Upper Buffing Motor</td> <td style="text-align: center;">0.12 kW (3000 RPM)</td> </tr> <tr> <td>Lower Buffing Motor</td> <td style="text-align: center;">0.12 kW (3000 RPM)</td> </tr> <tr> <td>Pre-heating</td> <td style="text-align: center;">0.4 kW</td> </tr> <tr> <td>Glue Pot</td> <td style="text-align: center;">1.315 kW</td> </tr> </tbody> </table> </div>
