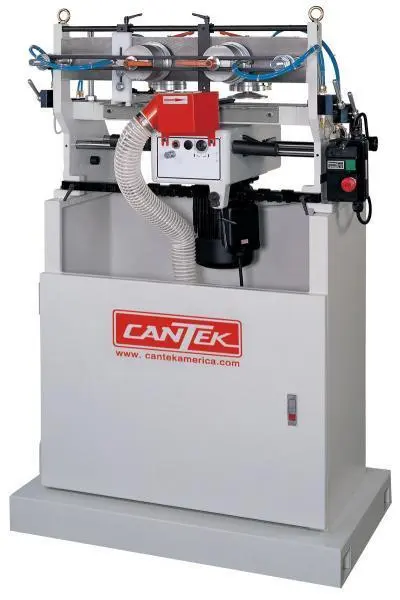

<p>Add prestige to your cabinets with aesthetically pleasing dovetail drawer boxes with the Cantek JDT65 manual dovetailer. Dovetails display your quality and are built to last! Producing beautifully aesthetic dovetails for drawer box production from a wide range of wood types, including plywood and solid wood. The JDT65 machine produces both the pin and tail of the dovetail simultaneously. All four sides of the drawer can be loaded into the machine for optimum production capacity. The operator controls the dovetail unit by following a simple template allowing for ease of operation and quality joints. Equipped with a choice of four pitch templates for varying types of dovetail joints.</p>
<h3>Features:</h3>
<div class="std">
<ul>
<li>Max. workpiece size 59" x 16 ½"</li>
<li>Workpieces are clamped by air clamps</li>
<li>Equipped with an indication bar for indicating cutting position<br></li>
<li>Tenon and mortise depth are conveniently adjusted according to the thickness of the workpiece<br></li>
<li>The spindle accommodates 12 mm TCT eccentric cutter <br></li><li>Enclosed base</li><li>Magnetic switch with thermal overload protection</li>
</ul>
<p> </p>
<table style="width: 366px;">
<tbody>
<tr>
<td>
<p><strong>SPECIFICATIONS:</strong></p>
</td>
<td style="text-align: center;">
<p> </p>
</td>
</tr>
<tr>
<td>
<p>Min. Workpiece Size</p>
</td>
<td style="text-align: center;">
<p>7.9" x 2.4"</p>
</td>
</tr>
<tr>
<td>
<p>Max. Workpiece Size</p>
</td>
<td style="text-align: center;">
<p>59" x 16.5"</p>
</td>
</tr>
<tr>
<td>
<p>Min/Max Dovetail Height</p>
</td>
<td style="text-align: center;">
<p>0.2" ~ 7.1"</p>
</td>
</tr>
<tr>
<td>
<p>Min/Max Front Thickness</p>
</td>
<td style="text-align: center;">
<p>0.28" ~ 2.36"</p>
</td>
</tr>
<tr>
<td>
<p>Min/Max Side Thickness</p>
</td>
<td style="text-align: center;">
<p>0.28" ~ 3.6"</p>
</td>
</tr>
<tr>
<td>
<p>Number of Spindles</p>
</td>
<td style="text-align: center;">
<p>1</p>
</td>
</tr>
<tr>
<td>
<p>Spindle Speed (RPM)</p>
</td>
<td style="text-align: center;">
<p>18,500 RPM</p>
</td>
</tr>
<tr>
<td>
<p>Dovetail Spacing</p>
</td>
<td style="text-align: center;">
<p>1", 1.5", 2", 2.5"</p>
</td>
</tr>
<tr>
<td>
<p>Table Height from Floor</p>
</td>
<td style="text-align: center;">
<p>46.5"</p>
</td>
</tr>
<tr>
<td>
<p>Dust Collection Ports</p>
</td>
<td style="text-align: center;">
<p>front: 2.5" / rear: 4"</p>
</td>
</tr>
<tr>
<td>
<p>Air Pressure Required</p>
</td>
<td style="text-align: center;">
<p>6 bar</p>
</td>
</tr>
<tr>
<td>
<p>Motor Power</p>
</td>
<td style="text-align: center;">
<p>1 HP</p>
</td>
</tr>
</tbody>
</table>
